GAFchromic QuiCk Phantom Starter Package

GAFchromic™ Quick™ Phantom Starter Package

Fast and accurate end-to-end testing for patient treatment verification.

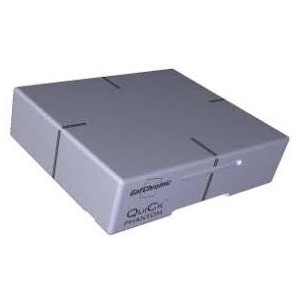

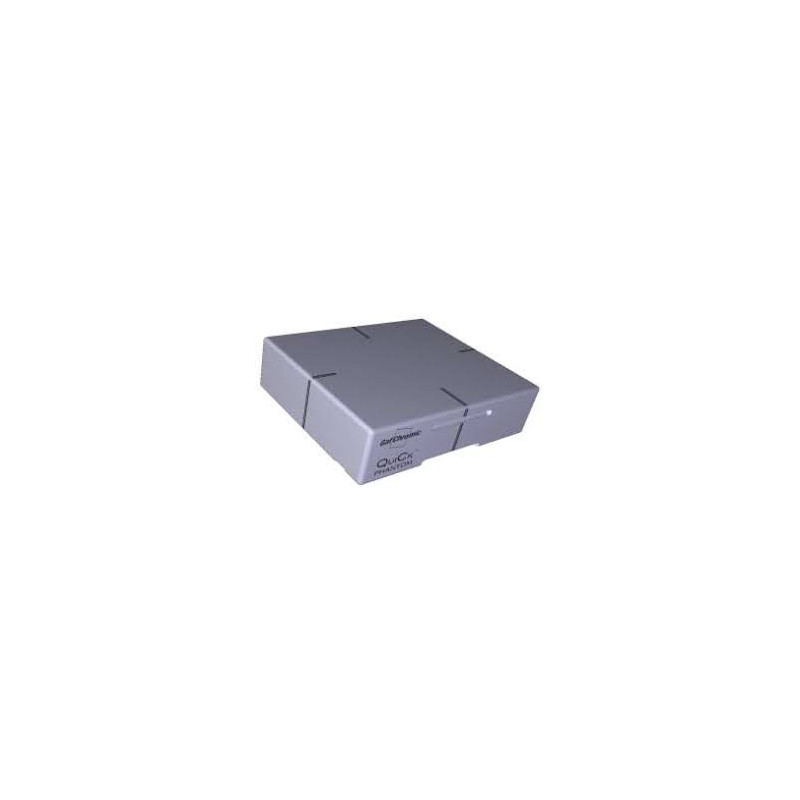

The GAFchromic™ QuiCk™ Phantom was designed for fast and accurate end-to-end testing for patient treatment verification. GAFchromic™ EBT3P film is customized EBT3 film for use in the QuiCk™ Phantom. The EBT3P film has holes in the film that correspond to the pins in the QuiCk™ Phantom to prevent film movement and provides automated registration. The QuiCk™ Phantom offers unprecedented speed, convenience and accuracy for Radiation Therapy QA procedures using radiochromic film.

How it works:

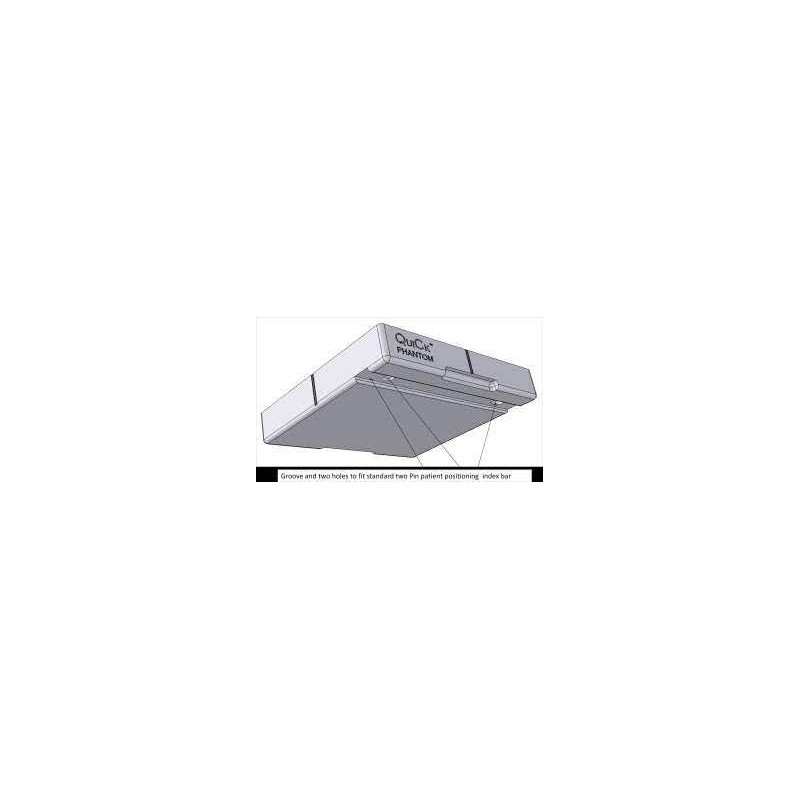

• The base of the phantom has a groove and two holes to accommodate a standard two pin index bar for accurate and reproducible positioning
• The top and four sides of the phantom are engraved to facilitate accurate setup in all orientations
• Pins embedded asymmetrically in the phantom ensure accurate coordinates and orientation recognition in CT scans
• Automated registration when used with GAFchromic™ EBT3P and FilmQA Pro™ software

Features
• Phantom body-two slabs of plastic water water-equivalent to within 1% from 160 keV to 25 MeV
• Dimensions (each slab): 29 x 32 x 5 cm
• Phantom positioning – with a standard two-pin indexing bar the groove located on the bottom of the phantom, the QuiCk™ Phantom provides quick, accurate and repeatable positioning of the phantom on both CT and treatment couches
• Film position is indexed to the treatment couch allowing the comparison of the dose measurements to the treatment plan to be regarded as true end-to-end QA test of the treatment system
• Asymmetric features and fiducial patterning for correct orientation recognition in TPS

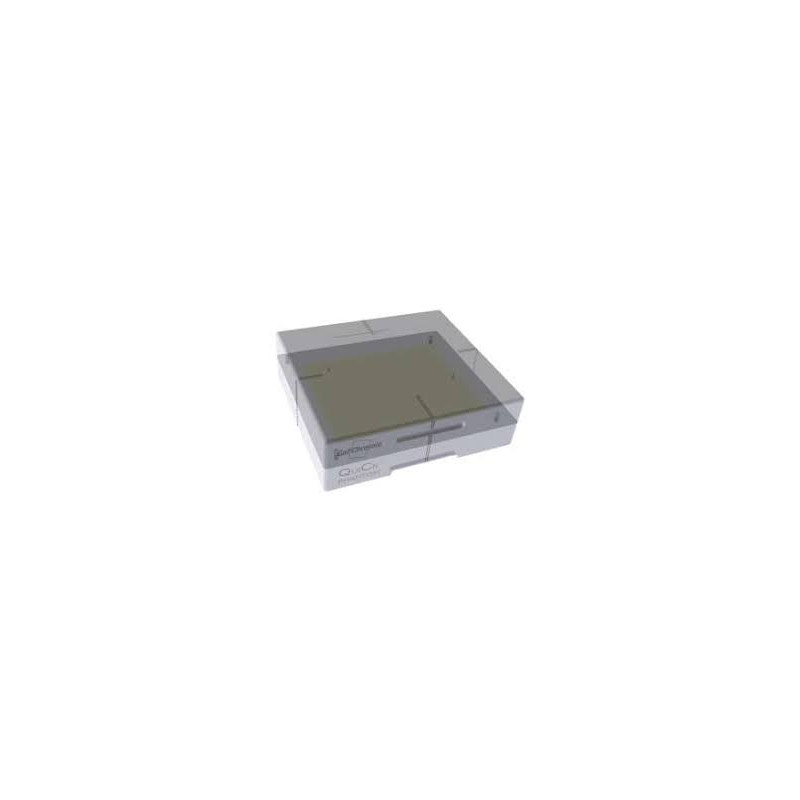

• Film positioning pins – the asymmetric placement of two film registration pins in the QuiCk™ phantom and the corresponding two-hole pattern on GAFchromic™ EBT3P film means there is only one possible orientation for the film in the phantom
• FilmQA Pro™ software has an unique feature that recognizes the fiducial pattern on the film image and automatically aligns it with the treatment plan for quick and accurate analysis and facilitates end-to-end QA test of the treatment system
• The QuiCk™ Phantom is also available with an optional 2 cm thick slab of Plastic Water for pin-point Ion Chamber insertion

— this slab is cut to lock to center while sandwiching the film—
available for A14, A1SL, and 31016 ion chamber (Items 115-105, 115-106, 115-107)

Includes:

1 QuiCk™ Phantom

1 box of EBT3P fim (Item 115-011)
