GARD for Elekta Synergy, Infinty 66.59cm

GARD for Elekta Synergy, Infinty 66.59cm
Item Number :
433-753

GARD for Elekta Synergy, Infinty 66.59 cm.

Details

Open section O-Quality_Assurance_Devices(PDF) to view related products. (Opens in a new tab)

GARD for Elekta Synergy, Infinty 66.59 cm.

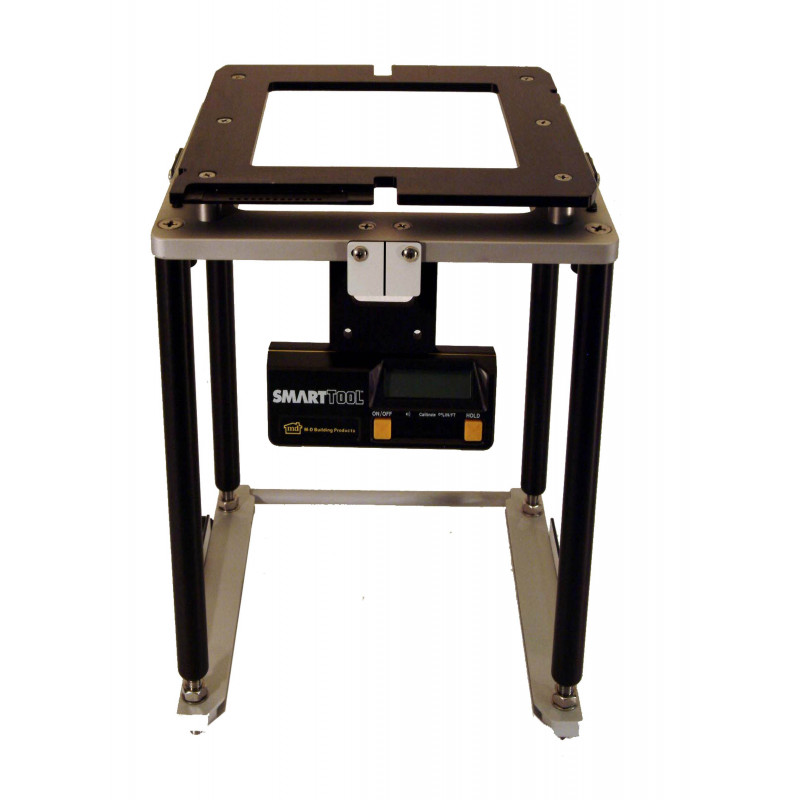

The GARD™ is designed to fit into the shadow tray of the therapy machine, providing a fixed reference point for all measurements.  This helps to eliminate errors associated with using independent devices for each geometric parameter.

• Easy to use

• Provides quick visual verifications

• Helps eliminate errors

Gantry and Collimator Angle Indicators

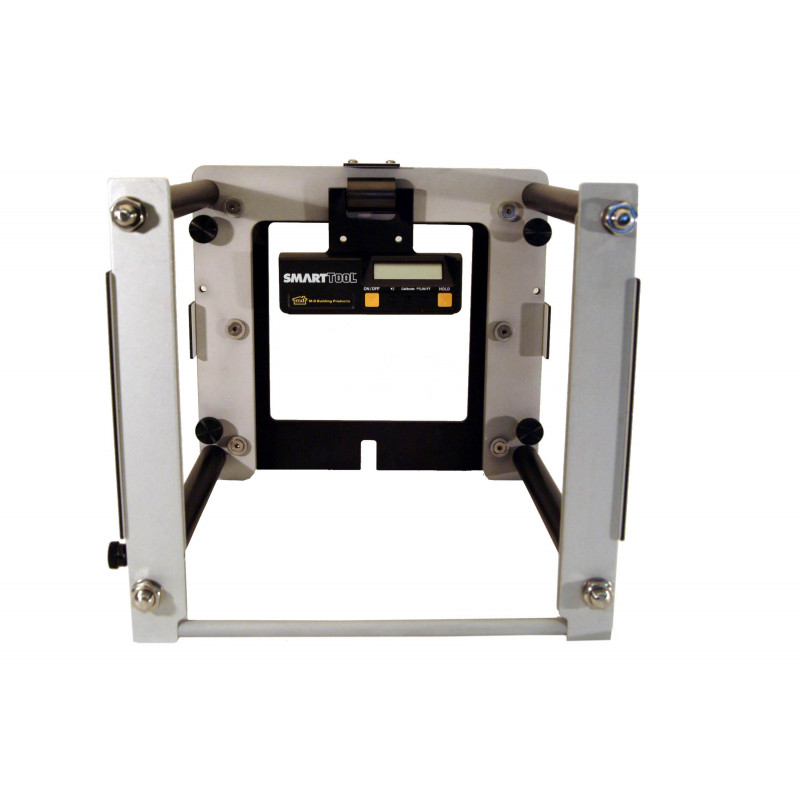

By using a smart tool level, indicators of gantry and collimator angle can be visually verified to 1/16" (0.16 cm) of a degree.  The level is mounted so that it can check any gantry or collimator angle.

Optical Distance Indicator and Laser Alignment

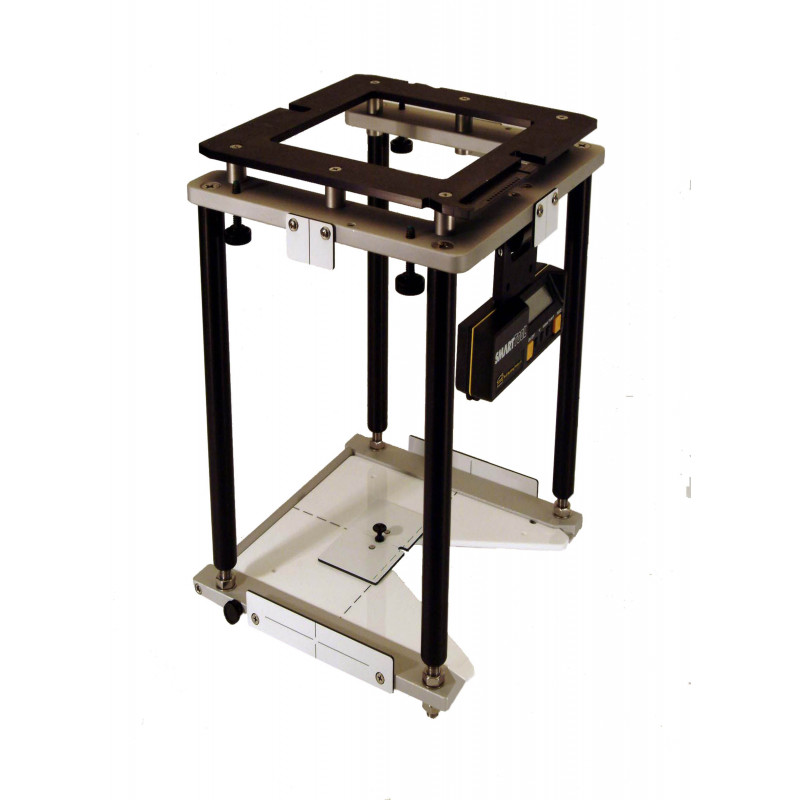

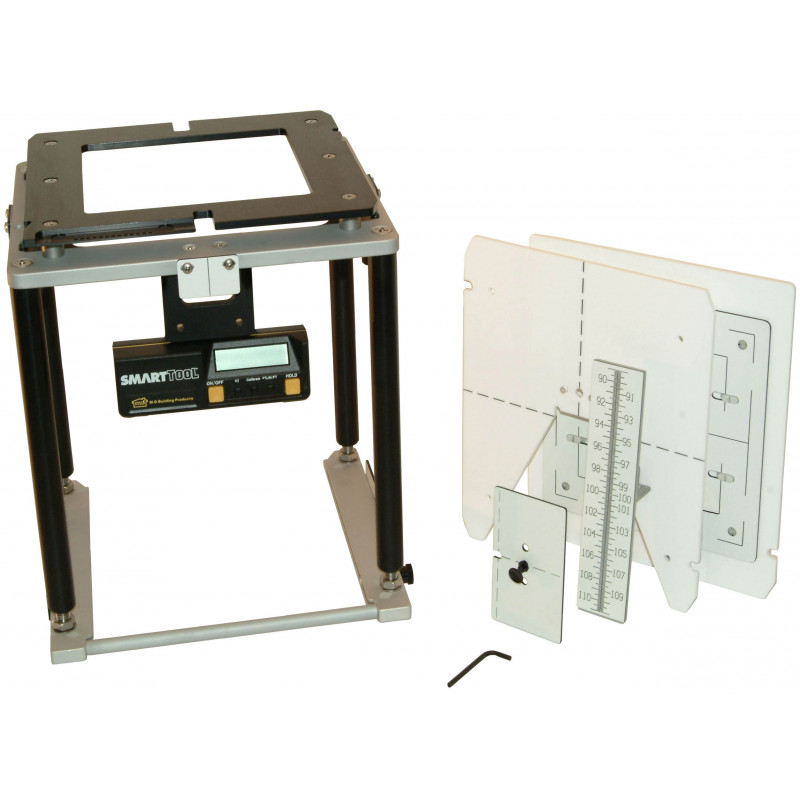

An acrylic tray with a distance scale is supplied with the GARD™.  Simply slide the tray into the accessory mount of the GARD™ and turn on the machine distance indicator.  The distance markers from the machine will be visible on the GARD’s™ distance indicator and should coincide.  The sides of the GARD™ have white acrylic plates on which black vertical and horizontal lines have been engraved.  When aligned, the field lasers should coincide with the etched black lines.

Light and Radiation Field Coincidence
An optional film cassette (8" x 10" or 20.32 x 25.4 cm) is available which fits into the accessory mount of the GARD™.  The top is etched with markings of four field sizes.  Field size and crosshair position accuracy, as well as light and radiation field coincidence, can be verified.

Specifications
Goniometer Accuracy/Resolution:
  0.2°
Optical Distance Indicator Resolution:  1.0 mm
Field Size Indicators:  5 x 5 cm, 10 x 10 cm, 15 x 15 cm, 20 x 20 cm
Size:  13.5" x 13.5" x 14.5" H (34.3 x 34.3 x 36.8 cm)
Weight:  9.5 lb (4.4 kg)

Please call regarding other manufacturers
