HDR Cart, 1 Inch Thick Lead, for Reloading Container

Open Section W: Shielding, Mobile L Blocks, Carts, Workstations, Carriers & Pigs(PDF) to view related products. (Opens in a new tab)

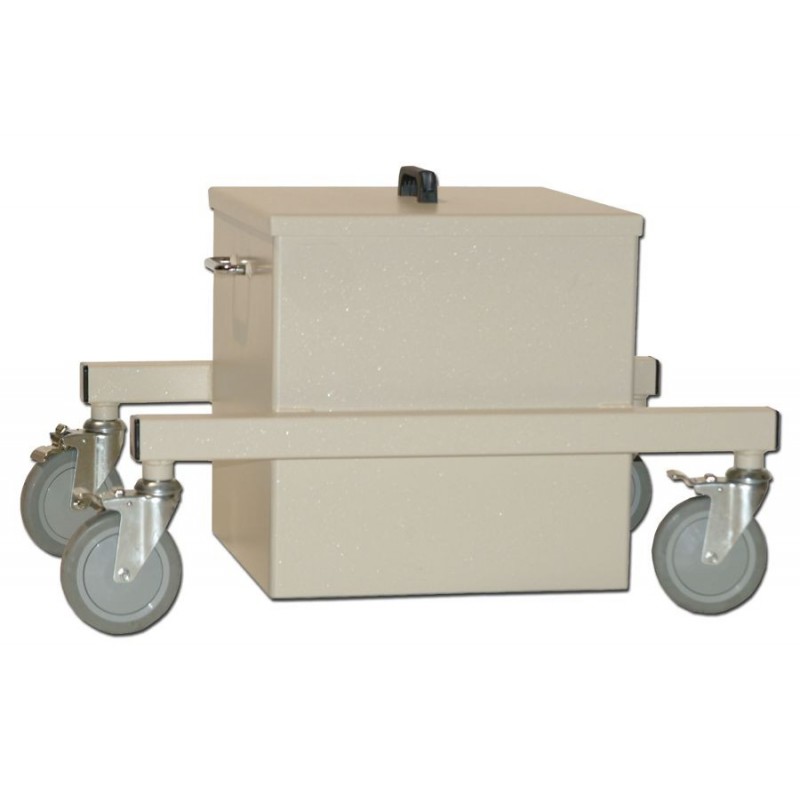

HDR Cart, 1" Thick Lead, for Reloading Container.

The HDR Cart is designed to store HDR Source Buckets upon arrival to the department before loading into the HDR System.  The four walls of the cart have a 1" (2.54 cm) lead thickness.  The bottom of the cart and the cover has no lead shielding.  The cart has two chrome handles on the sides and the cover has one handle.  The bottom of the cart sits 1" (2.54 cm) above the floor.  The container is welded to two support bars for the casters.  It has four locking swivel casters for ease of moving.

Specifications
Overall Dimensions:  24.5" W x 40.25" L x 19" H
Frame Dimensions:  22.74" W x 32.27" L (57.8 x 81.9 cm) excludes caster extension
Outside Container Dimensions:  18.74" x 18.74" x 18" H (47.6 x 47.6 x 45.7 cm)
Inside Container Dimensions:  16" x 16" x 18" H (40.6 x 40.6 x 45.7 cm)
Wall thickness:  1" (2.54 cm) lead
Wall Material:  Steel and lead
Casters:  Four 6" diameter (15 cm) swivel and locking
Finish:  Durable tan textured polyurethane enamel paint
Weight:  734 lb (334 kg)
