IBA RAZOR™ Diode Detector - BNC

Details

Open Section E: Cables, Connectors, Chambers, Stands & Accessories(PDF) to view related products. (Opens in a new tab)

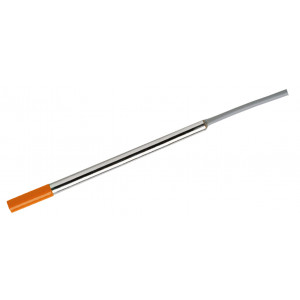

IBA RAZOR™ Diode Detector - BNC

High Performance Diode Detector for Small Field Dosimetry


The RAZOR™ Detector is a diode detector for measurements of small fields and of ranges with high dose gradients, e. g. stereotactic fields.



Suitable for Relative Dosimetry of photon and electron fields in radiotherapy
• For SRS / SBRT photon and electron beams
• Commission Accuracy & Efficiency



The unshielded RAZOR™ Diode detector is intended for relative Dosimetry of photon and electron beams in radiotherapy. The detector is designed for depth dose and profile measurements “in air” (i.e. inside a solid phantom) and in a water phantom, and for output factor measurements in small to medium sized photon beams.

The RAZOR™ detector is based on a p-type silicon diode chip, specifically designed for radiation therapy applications, and for the relative dosimetry of electron and stereotactic photon fields.

Performances verified in the range of photon beam qualities 60Co-15MV and 6 - 15MeV electron energies.



Specifications

Size, Material and Dimensions:
Stem Material: Stainless steel
Enclosure Material: ABS plastic and epoxy
Position of Measurement Point: Indicated by a cross-hair at the top of the detector
Effective Measurement Point: 0.8 ± 0.2 mm from surface
Chip Size: 0.95 x 0.95 x 0.4 mm
Active Detector Diameter: 0.6 mm
Active Detector Thickness: 0.02 mm
Head Diameter: 4.0 mm
Head Length: 15 mm
Stem Diameter: 4.0 mm
Total Length: 60 mm

Dosimetric Performance
Sensitivity: 4.1 nC/Gy
Dose Linearity: Typ.: <0.2%; max:0.5%
Energy dependence (6MV): Typ.: 0.5%; max: 1%
Lifetime: = 200kGy
Temperature Dependence: 0.05%/°C
