Interlocking Radiation Shields for PET

Interlocking Radiation Shields for PET.

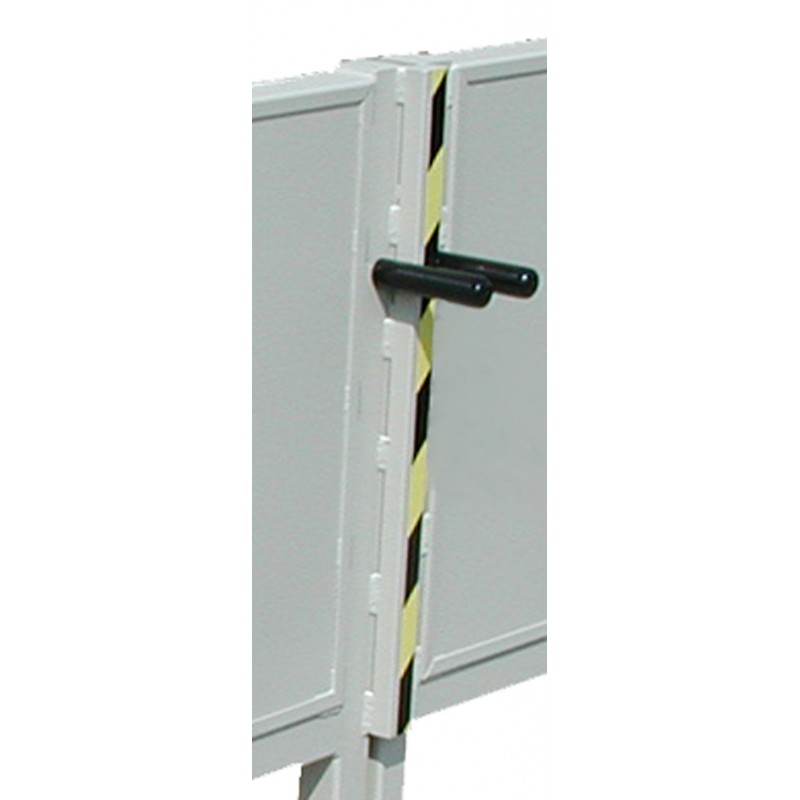

These interlocking radiation shields for PET are made of 2" (5.08 cm) thick lead with lead-filled posts and an additional filled post for the interlock.  The base of each shield has four 6” (15.24 cm) diameter swivel locking ball bearing casters.  The base of the bed end shield is higher for placement over the base of the side shield.  This allows the shields to abut to each other.  Each shield has handles on both sides and both ends.  The shields can be made adjustable for height movement up and down.

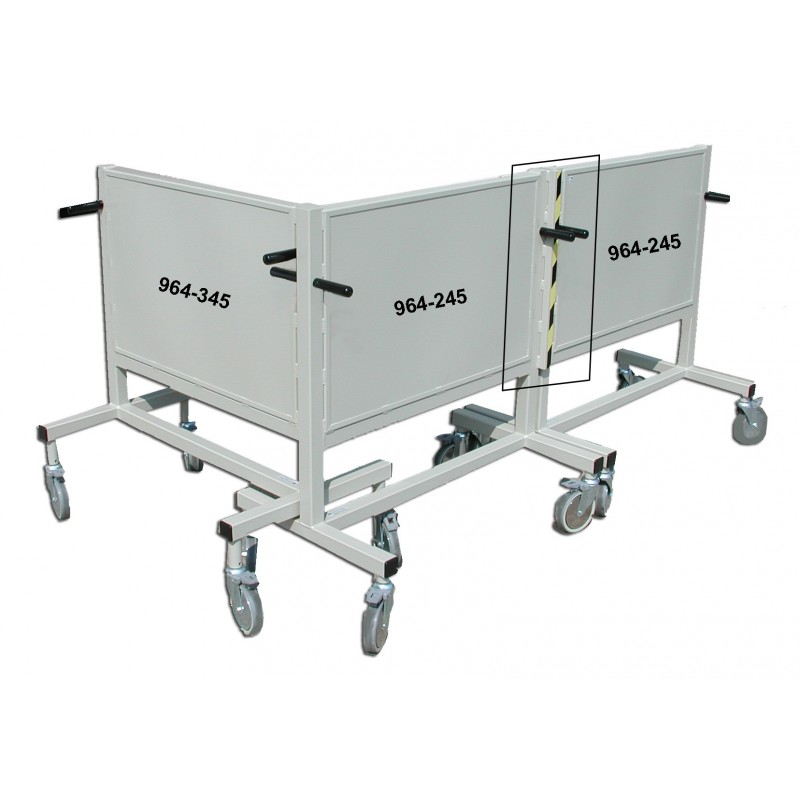

The Interlocking Radiation Shield Consists of:
964-245:  Fixed Rolling Radiation Shield
964-345:  Fixed Bed End Shield
964-930:  Optional Lead Filled Posts
964-940:  Optional Shield Interlock

Specifications
Lead Size:  36" W x 24" H x 2" T (91 x 61 x 5.08 cm)
Overall Size:  40" W x 45" H x 24" D (102 x 114 x 61 cm)
Casters:  Four 6" (15.24 cm) diameter swivel locking ball bearing
Finish:  Durable tan textured polyurethane enamel paint
Approximate Weight:  850 lb (387 kg)
