Pen Dosimeter Charger

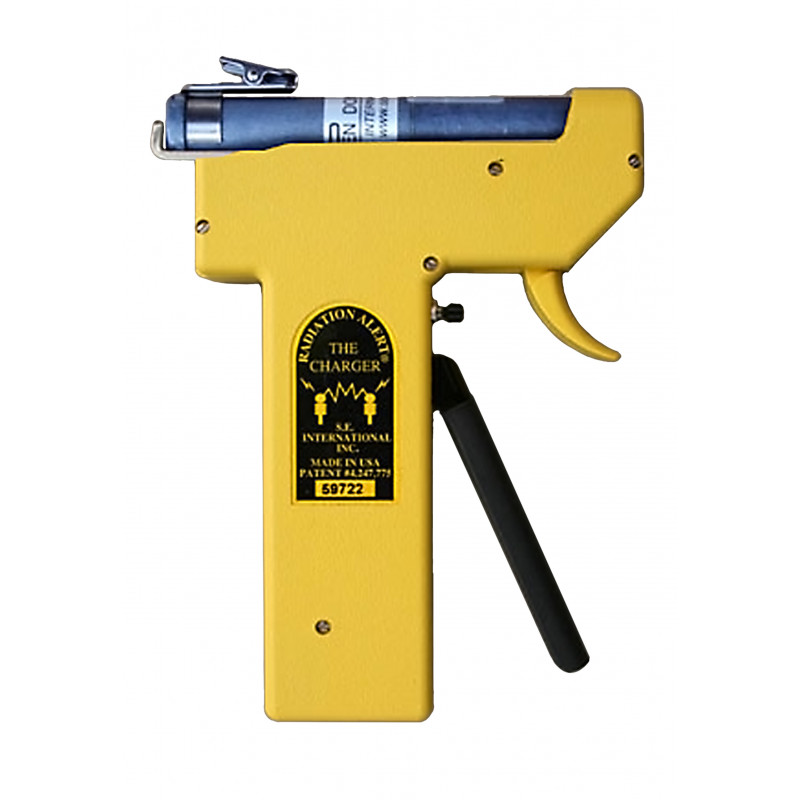

The patented, handheld Dosimeter Charger works with a variety of direct-reading pen dosimeters by simply squeezing the lever of a generator. The Charger requires no batteries. By pulling a trigger, a dosimeter is easily placed in or removed from the clamping action that holds it snugly in the cradle. A discharge button above the clamp easily discharges any charge beyond zero on the meter of your Pen Dosimeter. All you need is a light source and a few seconds to zero your radiation dosimeters and get them back in the field.

Specifications

Power: 15,000 volt piezoelectric generator

Discharge Bulb: Flashes to indicate the instrument is operational

Clamping Mechanism: Spring loaded, adjustable and self locking. All metal parts are stainless steel

Temperature Range: Opertaing: -20°C to +50°C (-4°F to +122°F)

Humidity Range: 0 to 60% Relative Humidity

Weight: 8.6 oz. (245g)

Size: 6" x 4.2" (at its widest point) x .87" (15.24 x 10.79 x 2.22cm)
