Dosimeter Charger Model 909B

Dosimeter Charger Model 909B
Dosimeter Charger Model 909B
Item Number :
343-750

Dosimeter Charger Model 909B.

Details

Open section N-Dosimeters_Monitors_Meters(PDF) to view related products. (Opens in a new tab)

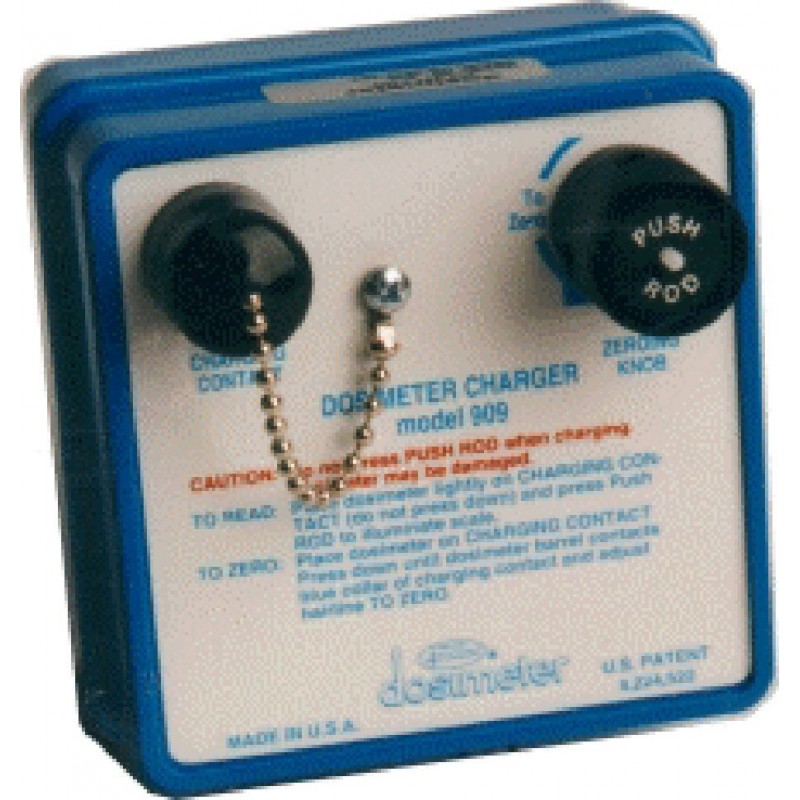

Dosimeter Charger Model 909B.

Easier charging, viewing, dosimeter protection and improved accuracy are the biggest reasons the battery operated 909B Dosimeter Charger is the best value on the market today.

Features
• Capable of charging any Direct-Reading dosimeter

• Conforms to ANSI N42.6-1980

• Operates on two 1.5 V “AA” Batteries

• Has the ability to “kick” or remove all residual charge from dosimeters properly, preventing spurious upscale fiber movement

• LED Reading light to allow for easy charging/viewing

• Residual static charge removed for improved accuracy

The charger’s LED reading light reduces re-zeroing time and effort by eliminating the need to remove the dosimeter from the charger for reading. Simply view the scale while the dosimeter is resting lightly on the charger contact after re-zeroing. Reading in the same orientation as charging also minimizes the effect that gravitational induced fiber movement has on dosimeter accuracy and precision.  The 909B Dosimeter Charger charging contact is spring-loaded and has a positive mechanical stop. This design feature makes it virtually impossible to damage dosimeters through excessive charging force.

The patented “kick” feature found on the 909B Dosimeter Charger automatically removes residual static charge from the dosimeter’s charging pin every time the dosimeter is re-zeroed. This eliminates a major source of erroneous fiber movement (up to 5% full scale).

Specifications
Weight:  10.6 oz (302 g)
Size:  4" L x 4" W x 3.5" H (10.2 x 10.2 x 8.9 cm)
Case:  ABS Plastic
Controls:  One turn potentiometer
Reading: Spring-loaded push rod
Power: 1.5V “AA” Batteries
Charging Voltage:  40 V to 220 V
Operating Temperature:  0° to 120°F (-18° to 49°C)
Lamp: LED
