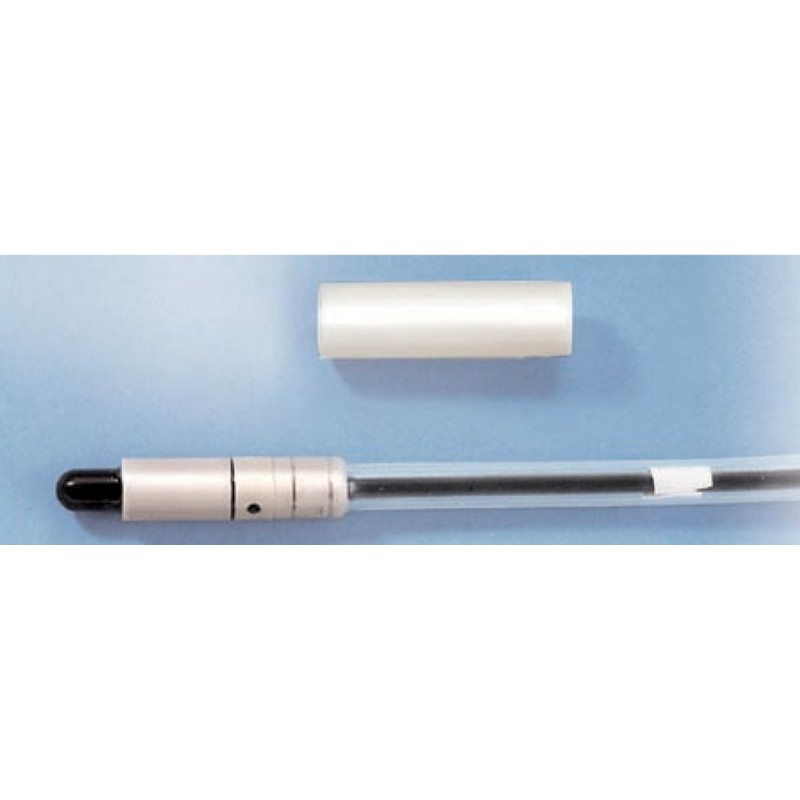

Scanditronix / Wellhofer Compact Chamber CC08

Scanditronix / Wellhofer Compact Chamber CC08
Scanditronix / Wellhofer Compact Chamber CC08
Item Number :
300-760

Scanditronix / Wellhofer Compact Chamber CC08.

Details

Open section Q-Cables_Chambers_Accessories(PDF) to view related products. (Opens in a new tab)

Scanditronix / Wellhofer Compact Chamber CC08.

All compact chambers are designed for measurements with high reproducibility in air, in solid or in water phantoms.  They are suitable for relative dosimetry of photon, electron and proton fields in radiotherapy.

CC08 is used for customized applications during manufacturing and installation of linear accelerators (e.g. “Buddelship”).  Used for radial and axial beam  incidence.

Features

• Waterproof

• Air ionization chambers

• Vented through waterproof sleeve

• Fully guarded

• Supplied with individual factory calibration certificate and user’s guide

Specifications
Cavity Volume:  0.08 cm3
Cavity Length:  4.0 mm
Cavity Radius:  3.0 mm
Wall Material:  C552
Wall Thickness:  0.070 g/cm2
Central Electrode Material:  C552
