Scanditronix / Wellhofer Farmer Type Chamber FC65-P

Scanditronix / Wellhofer Farmer Type Chamber FC65-P
Scanditronix / Wellhofer Farmer Type Chamber FC65-P
Item Number :
300-720

Scanditronix / Wellhofer Farmer Type Chamber FC65-P.

Details

Open Section E: Cables, Connectors, Chambers, Stands & Accessories(PDF) to view related products. (Opens in a new tab)

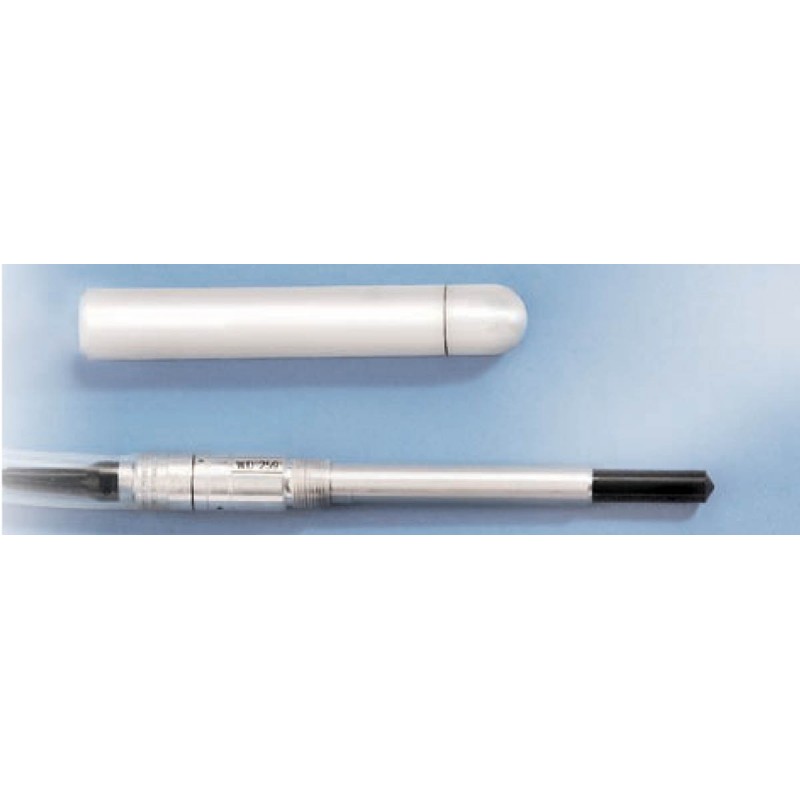

Scanditronix / Wellhofer Farmer Type Chamber FC65-P.

All farmer type chambers are designed for measurements with high reproducibility in air, in solid or in water phantoms.  They are suitable for absolute dosimetry of photon, electron and proton beams in radiotherapy.

FC65-P can be used for all routine applications and its robust plastic construction is perfect for daily beam check.

Features

• Waterproof

• Air ionization chamber

• Vented through waterproof sleeve

• Fully guarded

• Includes Build-up Cap, with individual factory calibration certificate and user’s guide

Specifications
Cavity Volume:  0.65cm3
Cavity Length:  23.1 mm
Cavity Radius:  3.1 mm
Wall Material:  POM1
Wall Thickness:  0.057 g/cm2
Central Electrode Material:  Aluminum
Waterproof:  Yes

1Poly Oxy Methylene (CH20). A trade name is Delrin.
