Tall Lead Storage Container for Ge-68 Phantom

Tall Lead Storage Container for Ge-68 Phantom

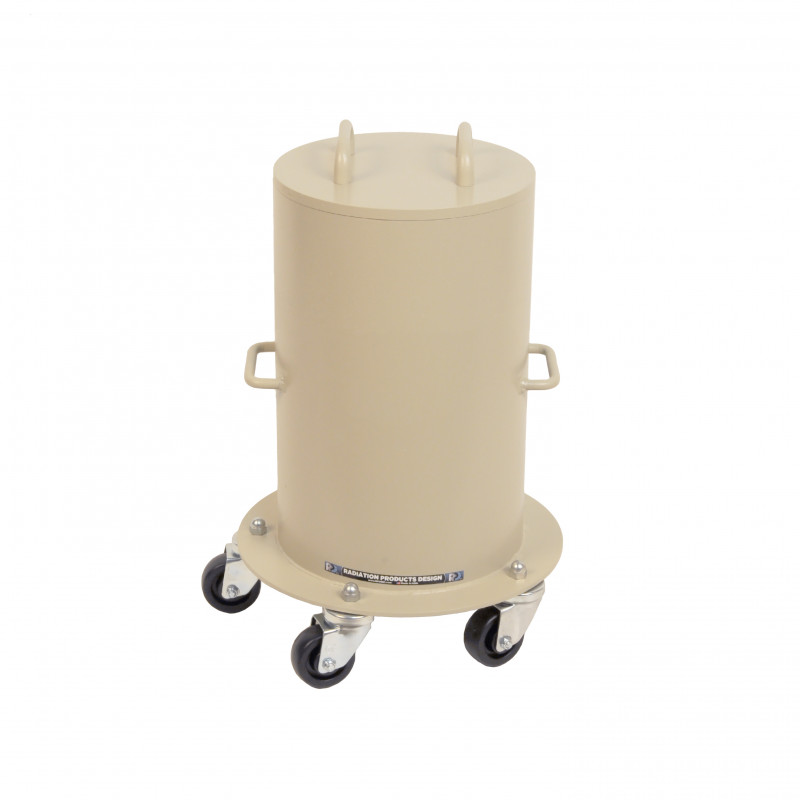

The Tall Lead Storage container was designed as a storage holder for the Precision Ge-68 Phantom for PET camera quality assurance.

The container has an outside wall of a ¼" (.64 cm) steel with 1" (2.54 cm) lead shielding on the inside and the chamfer top allows for the cover to sit snuggly on top.  Two U-handles welded to the side of the container allow for easy movement.  The cover is 1" (2.54 cm) lead with a chamfer bottom to fit into the container.  Two U-handles welded to the cover allow for easy removal.  The container is welded to the 16" (40.6 cm) diameter steel base plate.  Easy mobility is achieved by the five 3" (7.6 cm) non-locking swivel casters that are bolted to the base plate.

Specifications
Overall Dimensions:  16" Dia. x 23 7/8 H (49 x 60.6 cm)

Container Dimensions
Outside: 12" Dia. x 19 H (30.5 x 48.3 cm)
Inside:  9" Dia. x 16 7/8" Deep (22.9 x 42.9 cm)

Container Wall Material:  1" Thick Lead (2.54 cm) and 1/4" Steel (.64 cm)

Container Cover:  1" Thick Lead (2.54 cm)

Container Cover Weight:  40 Lbs (18 Kg)

Container Bottom:  1" Thick Lead (2.54 cm)
Base Plate:  16" Dia. x 1/4" Thick Steel (40.6 x .64 cm)
Casters:  Five 3" (7.6 cm) Swivel casters, non-locking

Finish:
Outside-Tan Textured Polyurethane
Inside-Tan Smooth Polyurethane

Weight:  410 lb (186 kg)
