Traceable Digital Barometer

Traceable Digital Barometer
Item Number :
469-150

Traceable® Digital Barometer.

Details

Open Section P: Measuring, Levels, Barometers, Thermometers & Rulers(PDF) to view related products. (Opens in a new tab)

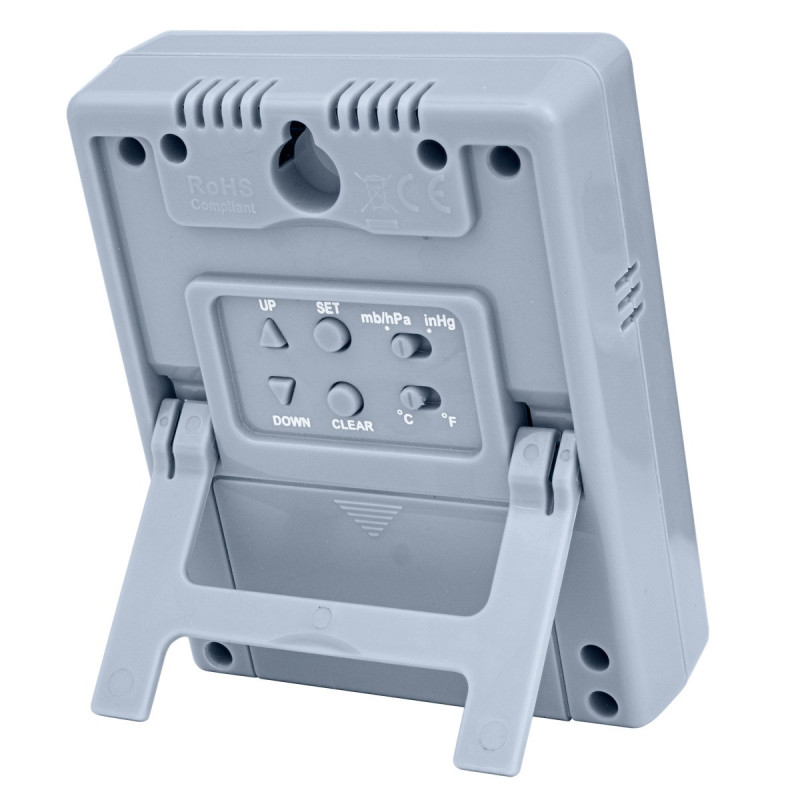

Traceable® Digital Barometer



The Traceable Digital Barometer is the perfect unit for plants, labs, and all other environments where there is a need to monitor conditions of environmental air parameters. A four-line LCD continuously and simultaneously shows barometric pressure, temperature, relative humidity, barometric pressure trend and time-of-day. Minimum\Maximum readings for barometric pressure, temperature and relative humidity are stored every hour for the last 24 hours and are available for recall at the touch of a button. HI/LO alarms can be set for barometric pressure, temperature, and relative humidity.

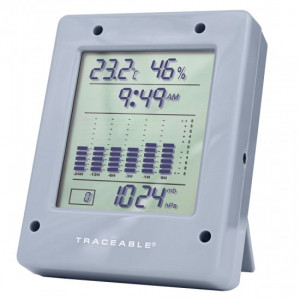

• A four-line LCD continuously and simultaneously shows barometric pressure, temperature, relative humidity,
barometric pressure trend and time-of-day.
• Minimum\Maximum readings for barometric pressure, temperature and relative humidity are stored every hour for
the last 24 hours and are available for recall at the touch of a button.
• Computer output allows unit to be connected to a computer using the accessory Computer Data Acquisition System to
permanently capture readings.


Measuring Ranges
Barometric pressure range from 500 to 1030 millibars (mbar) with a resolution of 1 mbar. Accuracy is ±4 mbar. Barometric pressure trend shows in bar-chart format the current and past 1-, 3-, 6-, 12- and 24-hour readings. Switching permits viewing in milibars (mbar), inches of mercury (inHg), or hectopascals (hPa). Altitude compensation is –100 to 2500 meters.

Temperature range is 32 to 131°F and 0 to 55°C. Resolution is 0.1° and accuracy is ±0.4°C. Relative humidity range is 5 to 95%.  Resolution is 1% RH and accuracy is ±3% RH between 5 to 75%, otherwise ±5% RH.  Computer output allows unit to be connected to a computer using the accessory Computer Data Acquisition System to permanently capture readings.


Traceable Certificate
Multi-point calibration on an individually-numbered Traceable® Certificate which assures accuracy from our ISO/IEC 17025:2017 (1750.01) calibration laboratory accredited by A2LA.  It indicates traceability of measurements to the SI units through NIST or other recognized national measurement institutes (NMI) that are signatories to the CIPM Mutual Recognition Agreement.

Supplied With Traceable® Certificate, wall mount, flip open stand and batteries.


Specifications

Temperature Range: 32 to 131°F (0 to 55°C)
Temperature Resolution: 0.1°
Temperature Accuracy: ±0.8°F (±0.4°C)
Humidity Range: 5 to 95% RH
Humidity Resolution: 1% RH
Humidity Accuracy: ±3% RH (5 to 75% RH), otherwise ±5% RH
Pressure Type: Absolute
Barometric Press. Range: 500 - 1030 mbar (14.77 - 30.41 inHg)
Barometric Press. Resolution: 1 mbar ( 0.01 inHg)
Barometric Press. Accuracy: ±4 mbar (±0.12 inHg)
Altitude Compensation: -100 to 2500 meters
Temp MIN/MAX Memory: Yes
Data Logging: Yes
Exportable Data: Yes
Size: 4" x 3" x 1" (10.16 x 7.62 x 2.54 cm)
Weight: 7 oz
