Complete Treatment Brassiere Library (40 piece) - Caddy Included

Complete Treatment Brassiere Library (40 piece) - Caddy Included
Item Number :
674-100-TBC

Complete Treatment Brassiere Library (40 piece) - Caddy Included

Details

Open Section T: Positioning, Immobilization, Head Support, Masks, Chair(PDF) to view related products. (Opens in a new tab)

Complete Treatment Brassiere Library (40 piece) - Caddy Included

Includes the complete set of all 20 Left and 20 Right Treatment Brassieres and storage caddy

Features of the Alderson Breast Dosimetry System:

•  Reshapes the ipsilateral breast more favorably for radiation treatments.

•  Eliminates inframammary folds.

•  Reduces dose to the lungs, heart and ribs.

•  Both shape and position are accurately repeatable, treatment after treatment.

•  More uniform dose.

•  Reshapes the contralateral breast to move it away from the beams.

•  Simplifies application of IMRT to breast treatments.

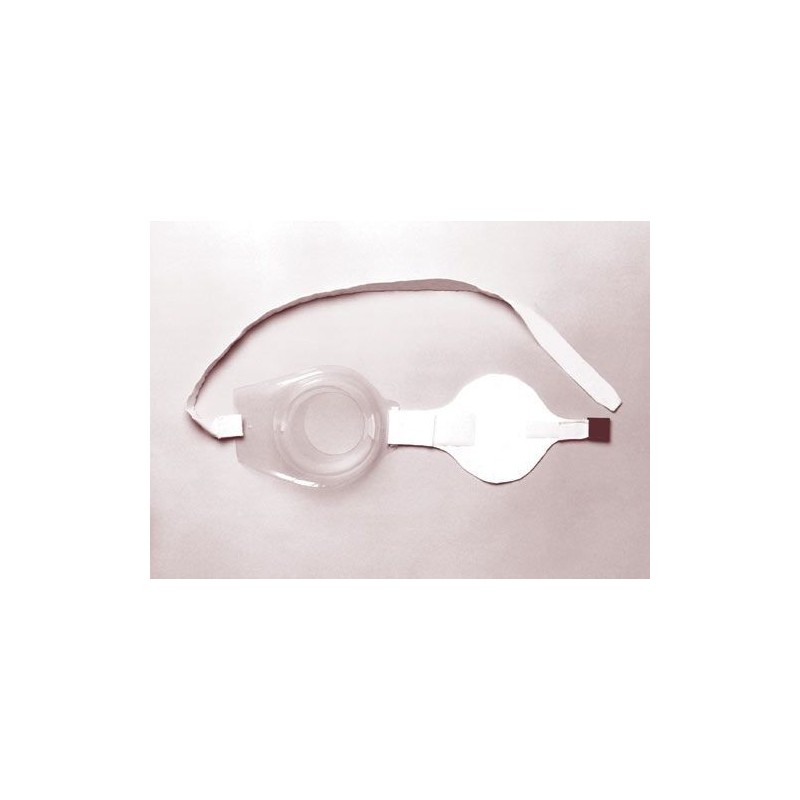

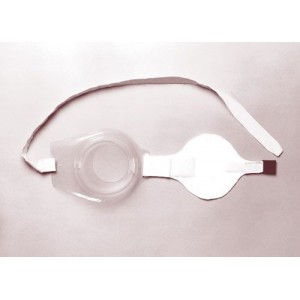

The Treatment Brassieres are breast cups formed of a transparent, semi-rigid plastic material.

Data on increased skin dose due to ipsilateral cup were submitted to the FDA. These data provided a comparison of skin dose increased by the Treatment Brassiere with the increase found for various thermoplastic positioning devices on the market. The skin dose due to the cup material (0.50 mm thick for small cups to about 0.63 mm thick for very large cups) was found to be substantially less than for other positioning devices. The FDA has issued a 510 (k) marketing clearance for the Treatment Brassiere.



Cup Selection
Cups are divided into four groups corresponding to small thoraxes (chest breadths from 27 to 32 cm), medium thoraxes (32 to 36 cm), large thoraxes (36 to 42 cm), and extra large thoraxes (over 42 cm).

Cup selection begins by measuring a patient’s chest breadth when supine and wearing her clothing brassiere. This measurement indicates the size group (S, M, L, XL) containing the correct cup. Left and right cups are not interchangeable.

The ipsilateral cup is positioned repeatedly on the patient by markings made on the patient’s skin through small holes at the medial, lateral and superior aspects of the cup flange.
Each cup is labeled to identify size group (S, M, L, XL), body Side (R or L), and breast volume.



Specifications
Material: Clear PETG Plastic
Density: 1.27 g/cm3
Thickness Range: .50 mm for smaller cups to .63 mm for extra large cups.



Treatment Brassiere Products

Treatment Brassiere Library (with Caddy) (Item # 674-100-TBC)
Includes the complete set of all 20 Left and 20 Right Treatment Brassieres and storage caddy

Treatment Brassiere Library (without Caddy) (Item # 674-100)
Includes the complete set of al l20 Left and 20 Right Treatment Brassieres, no caddy

Treatment Brassiere Caddy (Item # 674-TBC)

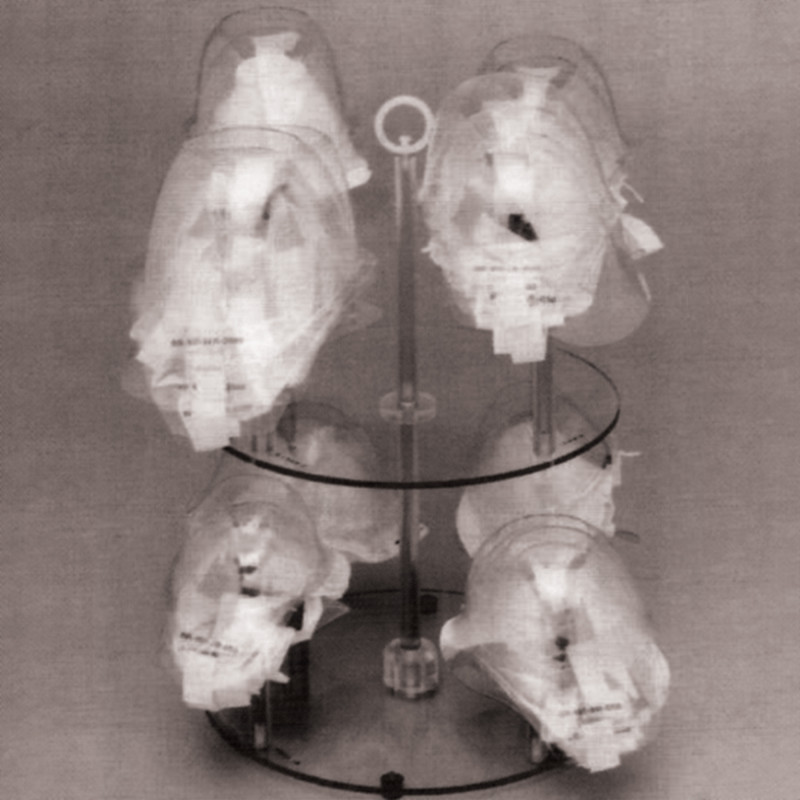

Portable 2 Tier, 8 post Storage Caddy with dust cover



Individual Brassiere Size Chart

Item # - Left Item # - Right Volume Treatment Brassiere Size *Approx. Cup Size
674-100SL-200 674-100SR-200 200 ml Small - Chest Breadth 27 - 32 cm A / B
674-100SL-300 674-100SR-300 300 ml Small - Chest Breadth 27 - 32 cm B / C
674-100SL-400 674-100SR-400 400 ml Small - Chest Breadth 27 - 32 cm B / C
674-100SL-500 674-100SR-500 500 ml Small - Chest Breadth 27 - 32 cm C
674-100SL-600 674-100SR-600 600 ml Small - Chest Breadth 27 - 32 cm C / D
674-100ML-250 674-100MR-250 250 ml Medium - Chest Breadth 32 - 36 cm B
674-100ML-500 674-100MR-500 500 ml Medium - Chest Breadth 32 - 36 cm C
674-100ML-750 674-100MR-750 750 ml Medium - Chest Breadth 32 - 36 cm C / D
674-100ML-1000 674-100MR-1000 1000 ml Medium - Chest Breadth 32 - 36 cm D / DD
674-100ML-1250 674-100MR-1250 1250 ml Medium - Chest Breadth 32 - 36 cm DD
674-100LL-500 674-100LR-500 500 ml Large - Chest Breadth 36 - 42 cm C
674-100LL-750 674-100LR-750 750 ml Large - Chest Breadth 36 - 42 cm C / D
674-100LL-1000 674-100LR-1000 1000 ml Large - Chest Breadth 36 - 42 cm D / DD
674-100LL-1250 674-100LR-1250 1250 ml Large - Chest Breadth 36 - 42 cm DD
674-100LL-1500 674-100LR-1500 1500 ml Large - Chest Breadth 36 - 42 cm DD / DDD
674-100XLL-1000 674-100XLR-1000 1000 ml X-Large - Chest Breadth 42 cm - Over D / DD
674-100XLL-1500 674-100XLR-1500 1500 ml X-Large - Chest Breadth 42 cm - Over DD
674-100XLL-2000 674-100XLR-2000 2000 ml X-Large - Chest Breadth 42 cm - Over DD / DDD
674-100XLL-2500 674-100XLR-2500 2500 ml X-Large - Chest Breadth 42 cm - Over DDD
674-100XLL-3000 674-100XLR-3000 3000 ml X-Large - Chest Breadth 42 cm - Over DDD
*Breast Sizes (volumes) correlate poorly with clothing brassiere cup sizes.

Data Sheet
  • Material: Clear PETG Plastic
  • Density: 1.27 g/cm3
  • Thickness Range: 0.50 mm for smaller cups to 0.63 for extra large cups
