Over and Under Bed Radiation Shield, 28 Inch W x 43 Inch H x 40 Inch D

Over and Under Bed Radiation Shield, 28 Inch W x 43 Inch H x 40 Inch D
Over and Under Bed Radiation Shield, 28 Inch W x 43 Inch H x 40 Inch D
Item Number :
957-022

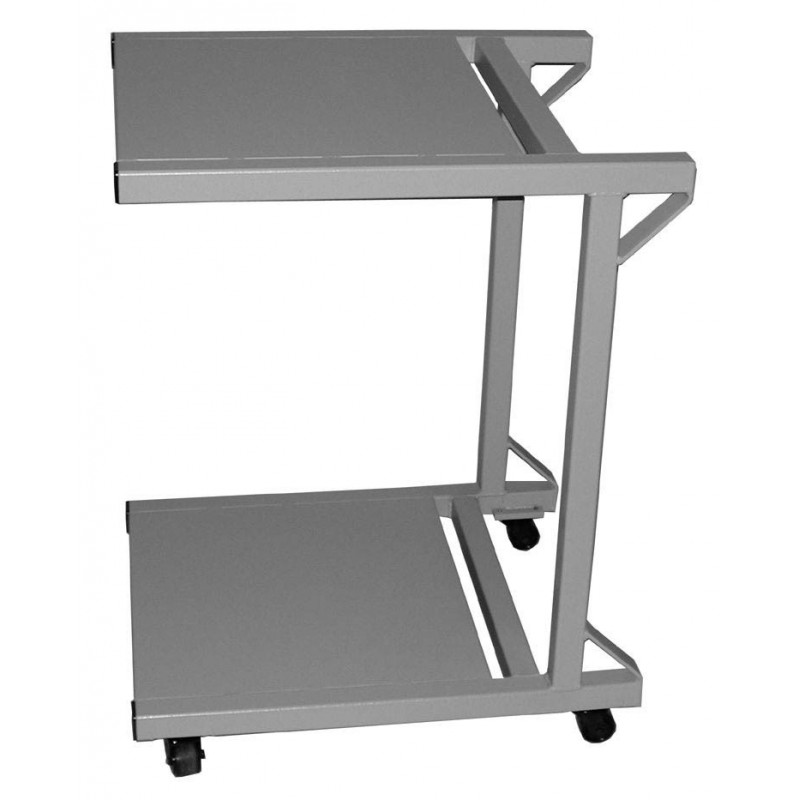

Over and Under Bed Radiation Shield, 28" W x 43" H x 40" D.

Details

Open Section W: Shielding, Mobile L Blocks, Carts, Workstations, Carriers & Pigs(PDF) to view related products. (Opens in a new tab)

Over and Under Bed Radiation Shield, 28" W x 43" H x 40" D.

The portable Over and Under Bed Radiation Shield, has a top and bottom shield.  Each shield is made of 1” lead covered with 16 ga. steel and mounted on a steel plate which is welded to the tubular steel frame. The shield incorporates smaller casters to allow for a 5 1/2” clearing height.

• Provides radiation protection to patients in rooms above and below

• Necessary if the ceiling and floor construction is thin

Specifications
Lead Size:
  Two 24” sq. x 1” T
Overall Size:  28” W x 43” H x 40” D
Floor to Top of Over Shield:  43”
Floor to Bottom of Over Shield:  41”
Floor to Top of Under Shield:  5 1/2”
Floor to Bottom of Under Shield:  3 ¾”
Inside Depth:  34”
Casters:  Four 2 1/2” swivel
Finish:  Axalta Beige Ridge Tan Powder Coating
Weight:  610 lbs
