Vaginal Depth Scale, 3.8cm Diameter x 26cm Long

Vaginal Depth Scale, 3.8cm Diameter x 26cm Long
Vaginal Depth Scale, 3.8cm Diameter x 26cm Long
Item Number :
707-138

Vaginal Depth Scale, 3.8cm Diameter x 26cm Long.

Details

Open Section O: Marking, Steritatt, UV, Dye, Tattoo, Penis Clamps & Seeds(PDF) to view related products. (Opens in a new tab)

Vaginal Depth Scale, 3.8cm Diameter x 26cm Long.

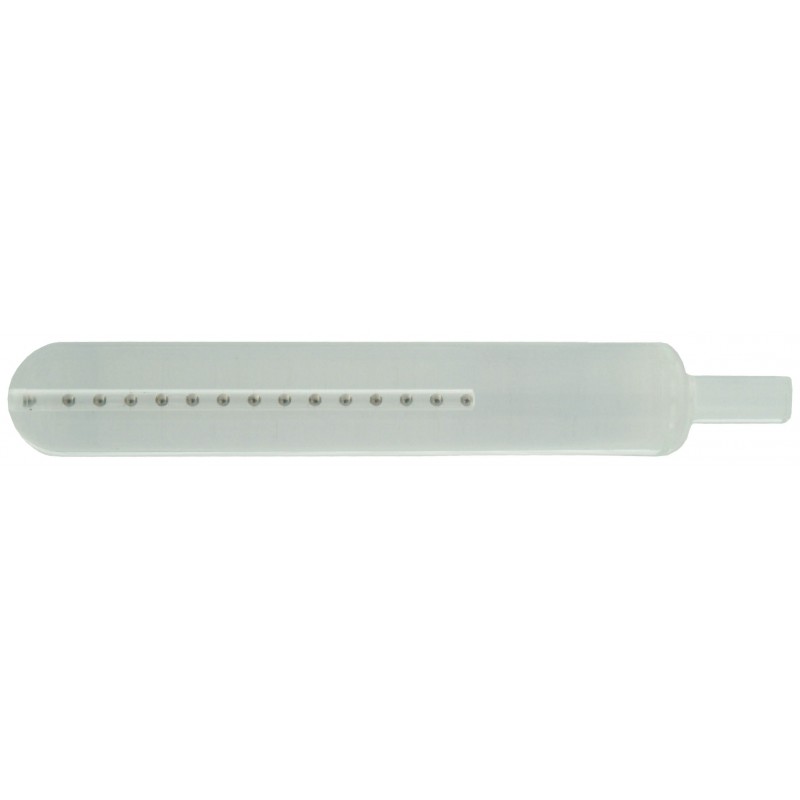

The vaginal depth scale can be used during simulation or for a port film.  Position and magnification can be determined by counting the lead balls which are spaced 1 cm apart and are 5 mm in diameter.

The vaginal depth scales up to 3.2 cm diameter can be used with the standard holder (Item 707-020).  The special vaginal depth scale holder (Item 707-030) is needed for the 3.8 cm diameter vaginal depth scale but will also accommodate all vaginal depth scales.

An introitus marker is included with the 1.6 cm diameter vaginal scale (Item 707-000) or can be purchased separately.  Introitus markers for all other vaginal depth scales are sold separately.

A thumb screw holds the introitus marker in position.

Specifications
Scale Size:
  26 cm L
Material:  Acrylic
Acrylic Density:  1.1859 g/cm3
Lead Balls:  5 mm Dia. Spaced Every 1 cm
Lead Ball Density:  11.35 g/cm3
