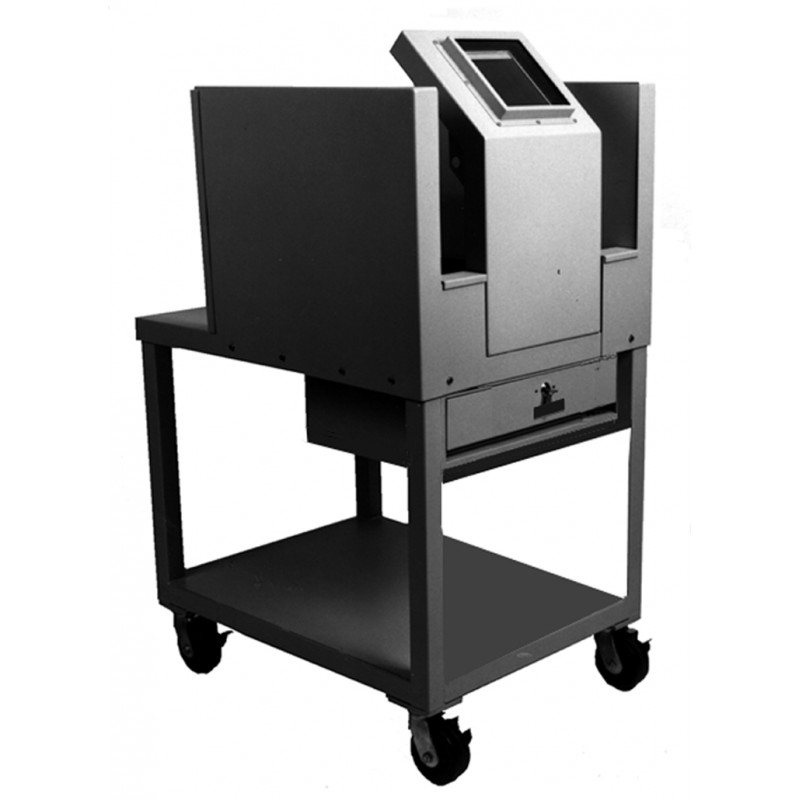

Lead Side Shield for Steel Table, Left Side

Open Section W: Shielding, Mobile L Blocks, Carts, Workstations, Carriers & Pigs(PDF) to view related products. (Opens in a new tab)

Lead Side Shield for Steel Table, Left Side.

Side Shields are used when radiation protection is needed to the sides of the radiation loading area.  The shield’s steel framework is bolted to the side of the table and the 2” thick lead blocks are stacked inside.  A steel cover plate is then secured in place.

Specifications (Per Side of Shield)

Dimensions:
Front Opening:  4 ¾” W x 13 ¾” H x 2” T
Side:  20” H x 24” D x 2” T

Lead Blocks:
15 Blocks: 2” x 4” x 8”
1 Block: 2” x 4 ½” x 6”

Finish:  Durable tan textured polyurethane enamel paint
Weight:  475 lbs
