Lead Side Shields for Steel Table

Lead Side Shields for Steel Table.

Side Shields are used when radiation protection is needed to the sides of the radiation loading area.  The shield’s steel framework is bolted to the side of the table and the 2” thick lead blocks are stacked inside.  A steel cover plate is then secured in place.

Specifications (Per Side of Shield)

Dimensions:
Front Opening:  4 ¾” W x 13 ¾” H x 2” T
Side:  20” H x 24” D x 2” T

Lead Blocks:
15 Blocks: 2” x 4” x 8”
1 Block: 2” x 4 ½” x 6”

Finish:  Durable tan textured polyurethane enamel paint
Weight:  475 lbs

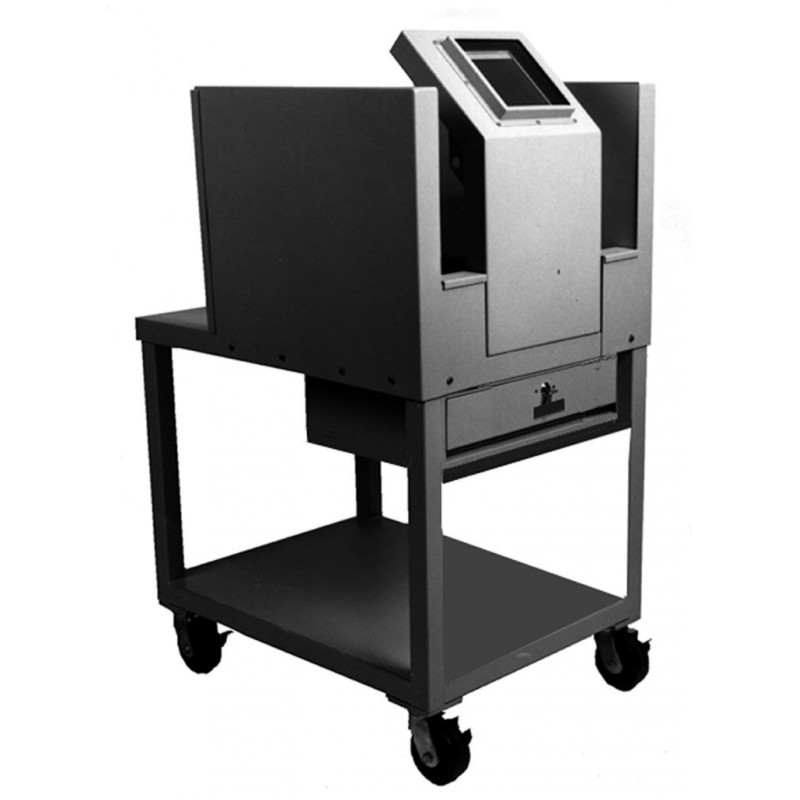

Items Shown in Photo are Sold Separately:
992-020 - Steel Table with Storage Drawer and Shelf
992-132 - Right, Lead Side Shield for Steel Table 2" Thick
992-134 - Left, Lead Side Shield for Steel Table 2" Thick

Choose one of the following L Blocks:
990-288 - L Block Lead Shield, 2" Thick Lead Glass
990-488 - L Block Lead Shield, 4" Thick Lead Glass
