L-Block Shield, 2 Inch Thick Lead, 2 Inch Thick Lead Glass

L-Block Shield, 2 Inch Thick Lead, 2 Inch Thick Lead Glass
Item Number :
990-288

L-Block Shield with Wide View Window, 2" Thick Lead, 2" Thick Lead Glass.

Details

Open Section W: Shielding, Mobile L Blocks, Carts, Workstations, Carriers & Pigs(PDF) to view related products. (Opens in a new tab)

L-Block Shield with Wide View Window, 2" Thick Lead, 2" Thick Lead Glass.

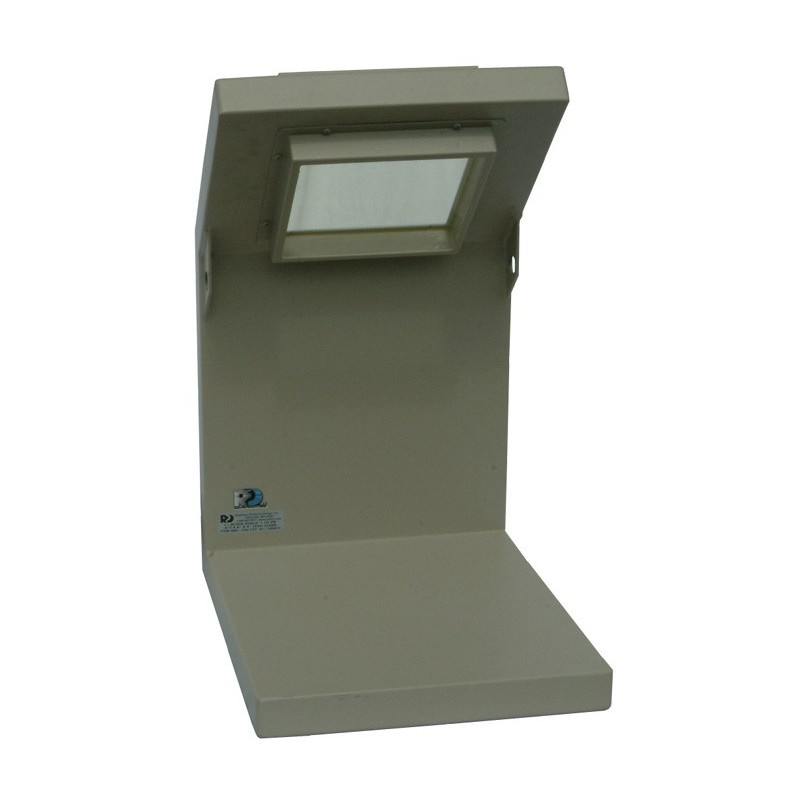

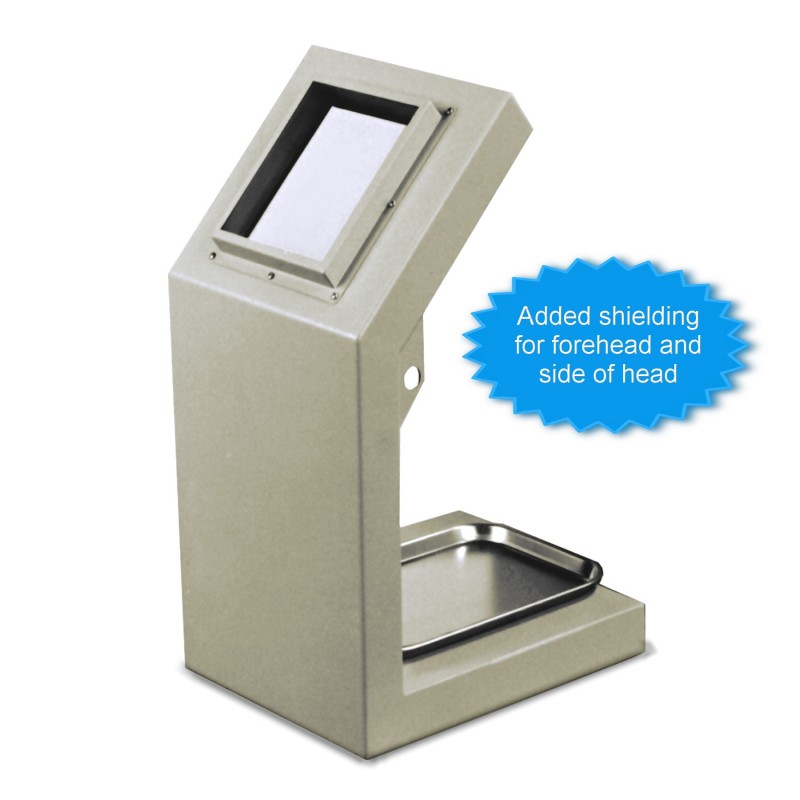

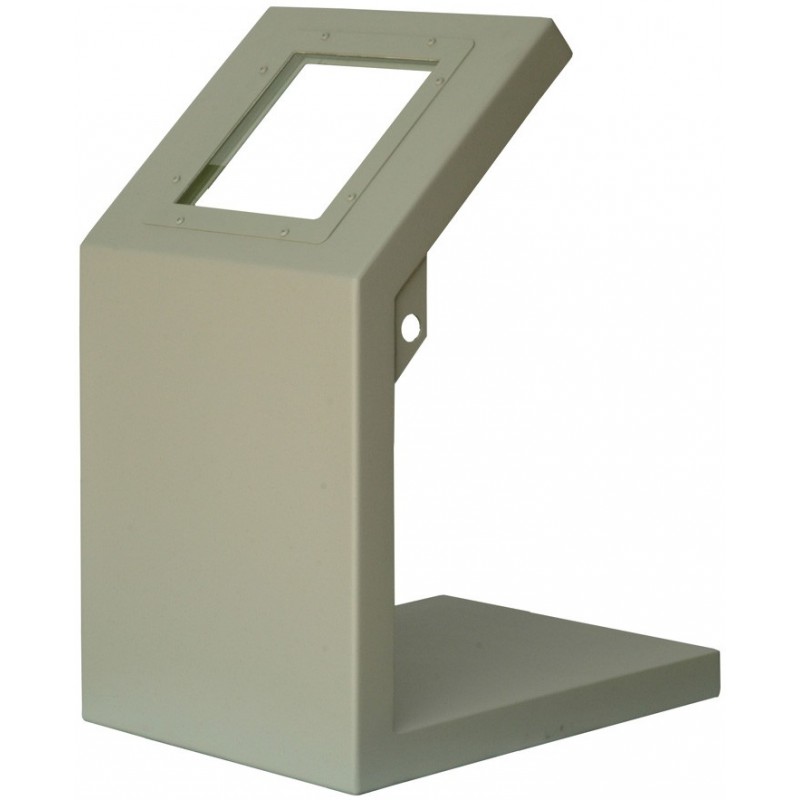

The L-Block Lead Shield’s tilted wide view leaded glass window provides easy viewing of the radiation loading area.  3” of lead on each side of the viewing window give maximum protection to the head.  The 8” square window is made of 2” thick leaded glass.  The L Block is made of sheet steel with lead shielding inside.  Two holes are provided for lifting the unit.

Specifications
Leaded Glass Size:
  8” Sq. x 2” T

Lead Glass Density:
5.2 g/cm3
Tenth Value Thickness (Cesium137) = 4.8 cm leaded glass

2.00” (5.08 cm) T leaded glass = 1.09" (2.33 cm) lead equivalence

Finish:  Durable tan textured polyurethane enamel paint
Overall Size:  14” W x 17 1/2” D x 24 1/2” H x 2 1/4” T
Weight:  420 lbs
