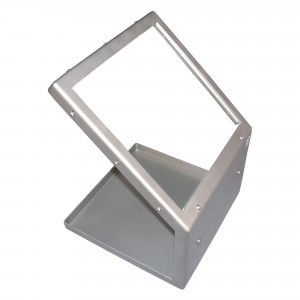

Mini Beta Shield Tall, Stainless Steel

Mini Beta Shield Tall, Stainless Steel
Mini Beta Shield Tall, Stainless Steel
Item Number :
906-083

Mini Beta Shield Tall, Stainless Steel.

Details

Open Section W: Shielding, Mobile L Blocks, Carts, Workstations, Carriers & Pigs(PDF) to view related products. (Opens in a new tab)

Mini Beta Shield Tall, Stainless Steel.

The free standing Mini Beta Shield is made of 1/8" (3.2 mm) thick stainless steel and specifically designed to protect personnel when handling beta-emitting isotopes.  The shield easily fits on a bench top or cart.  The shield is ideal for protection against 125Iodine and 103Palladium.  An 8 mm thick x 10" (25.4 cm) square lead glass viewing area.  The bottom of the shield has a 3/4" (2 cm) lip to contain any dropped seeds.

The optional arm rest is made of clear acrylic and has rubber pads to cushion the arms.  The arm rest is 29" wide and 3.5" deep (73.7 x 9 cm).  The optional arm rest can be easily mounted to the stainless steel shield with two bolts into pre-drilled holes.  The arm rest can be mounted in two different positions to the front of the shield, with arm rest forwards or backwards.

Shielding Equivalency
125Iodine:
 10th 1/2 Value Layer = 0.056 mm lead
103Palladium: 10th 1/2 Value Layer =  0.05 mm lead
Lead Density: 0.0056 cm x 11.35 g/cm3 = 0.06356
Stainless Steel Density: 1/8" (0.3175 cm) thick x 7.916 g/cm3 = 2.513
Specifications
Material: 1/8" (3.175 mm) thick stainless steel
Stainless Steel Density:  7.916 g/cm3
Viewing Area: 10.25" (26 cm) Square
Leaded Glass Density: 4.8g/cm3 (2 mm lead equivalency)
Lead Equivalency @ 150 kvp: 2 mm total
Lead Density: 11.35 g/cm3
Sterilization: Gas
Overall Size: 12" W x 12" D (30.5 x 30.5 x 62 cm)
Overall Height: 21" (53cm)
Front Panel Height: 12" (30cm)
Weight:  36 lb (16.5 kg)
