PET Workstation with Drawer, Container Well, and Side Shields

Open Section S: PET Products, Nuclear Medicine, Workstations, Carts & Pigs(PDF) to view related products. (Opens in a new tab)

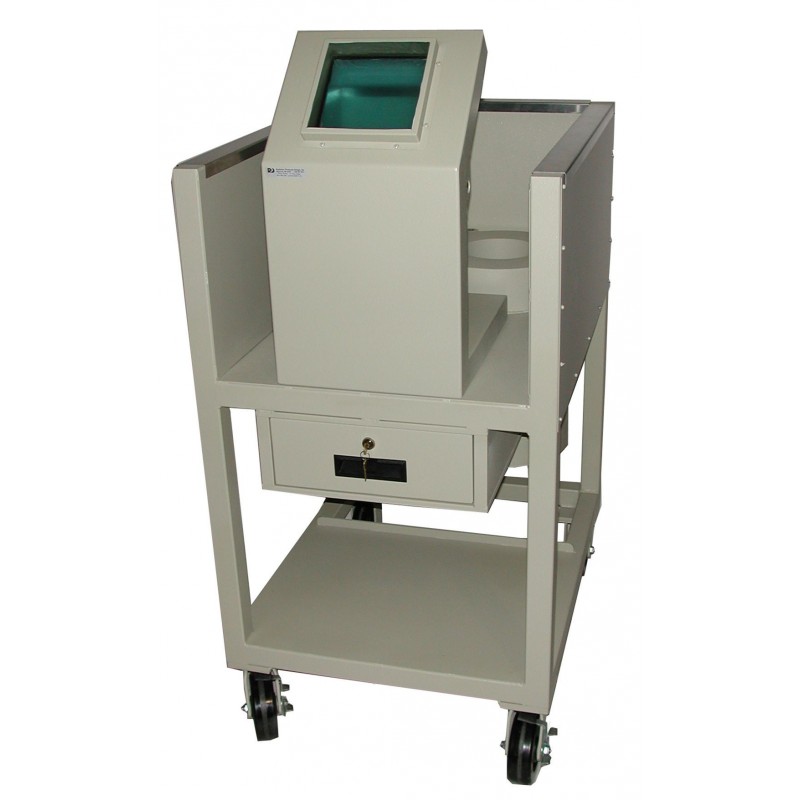

PET Workstation with Drawer, Container Well, and Side Shields.

The PET Workstation consists of a steel table with a drawer, lower shelf, container well, and side and back shields.  The L Block must be ordered separately.

The workstation table is made of 2" (5.08 cm) steel tubing.  The sides and back walls are 2" (5.08 cm) thick lead bricks covered with steel panels on both sides.  The four corner posts are filled with lead.

The container well is 19.5" (49.5 cm) from the front of the table and has 2.5" (6.35 cm) thick lead walls for the detector chamber to be placed into.  The 2.5" (6.35 cm) leaded bottom of the container well rotates to accommodate the insertion of the detector chamber from the bottom.  The container well bottom then rotates back and is bolted in place.  The container well rises 4" (10.16 cm) above the table top and is 16" (40.64 cm) deep.  The overall diameter of the container well is 13.5" (34.29) with an inside diameter of 7" (17.8 cm).  This size container well accommodates the Capintec CRC®-15PET detector chamber.

The workstation has 4 heavy duty casters.  The two rear casters are fixed and the two front casters are swivel and locking.  Each caster is rated at 2,000 lb (909 kg).

Specifications
Overall Dimensions:  27.75" W x 35.75" L x 61" H (70.5 x 90.8 x 155 cm)
Table Top Dimensions:  23.25" W x 31.25" L x 34.75" H (59 x 79 x 88 cm)
Side/Back Wall Height:  16" (40.6 cm)
Color:  Durable tan textured polyurethane enamel paint
Approximate Weight:  2,650 lb (1205 kg)

Note:  The workstation can be manufactured to fit other dose detector chambers.  When placing an order please specify manufacturer of dose calibrator detector, model, outside diameter and height.

Options for PET Workstation
Item 990-488:  2" (5.08 cm) Thick lead L-Bock with an 8" W x 8" L x 4" thick (20.3 x 20.3 x 10.2 cm) lead glass window.

L Block Dimensions:  14" W x 17.5" D x 24.75" H (35.6 x 44.5 x 63 cm)

Item 994-036 and 994-036-1:  Stainless steel tray that holds the dose calibration display unit.

Item 994-021:  Pair of steel channels that distribute the heavy weight of this workstation over a large floor area.

Item 994-020-21:  2.5" Thick (6.35 cm) Leaded Rotating Well Top Cover
