Stainless Steel Articulating Arm for Slessinger Board

Stainless Steel Articulating Arm for Slessinger Board
Stainless Steel Articulating Arm for Slessinger Board
Item Number :
946-063

Stainless Steel Articulating Arm for Slessinger Board

Details

Stainless Steel Articulating Arm for Slessinger Board



  • Cutout handle for easy placement
  • Accessory for the Slessinger Board


The Articulating Arm for the Slessinger Board was designed to hold a HDR Nucletron, HDR Varian, HDR Eckert & Ziegler, FSD LDR Applicators, Vaginal Cylinder, Tandems or other objects securely in place during GYN brachytherapy treatment on the Slessinger Board.

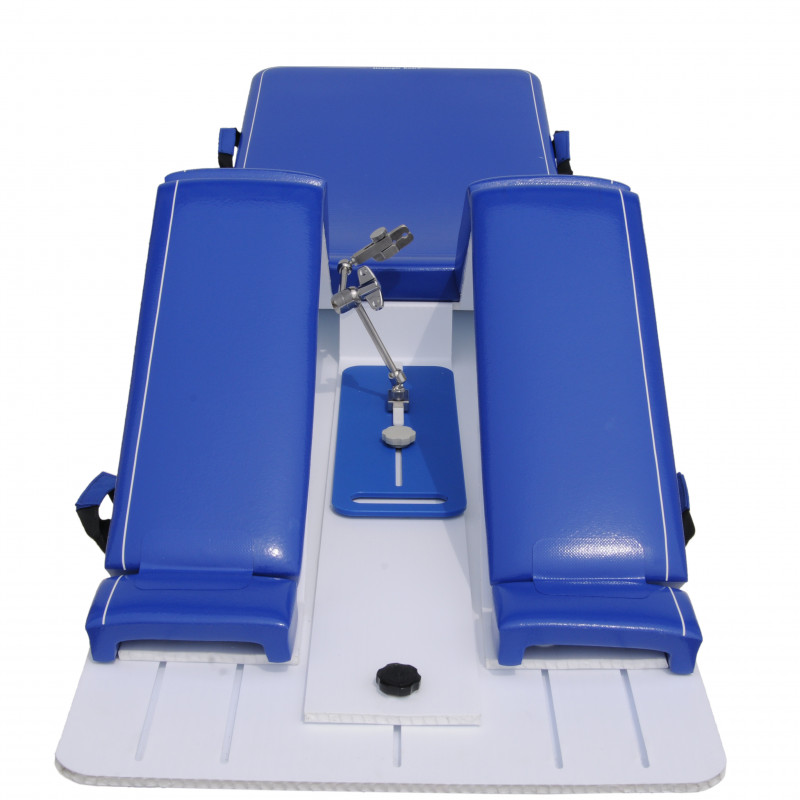

The Articulating Stainless Steel Arm Board (Blue) is mounted to the Slessinger Board with a knob and washers and can be moved in or out of the patient approximately 5". The treatment applicator is then placed into the patient while laying on the Slessinger Board. The Articulating Arm rail block is slid onto the board rail and the applicator clamp is adjusted to fit onto the treatment applicator and locked. The Articulating Arm and rail block is then locked in place.



The applicator clamp is fixed to one arm of the articulating arm and the other arm is fixed to the rail block. The rail block slides onto the 6" long board rail and is locked in position with the thumb screw.

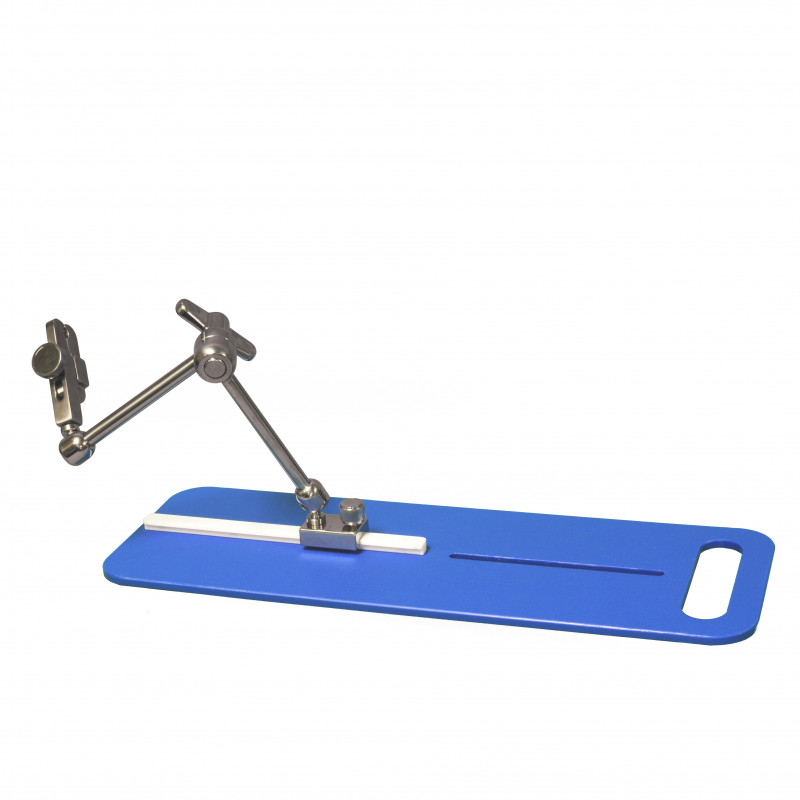

The Articulating Arm has two (2) arms that can rotate 360°. The end of each arm has a cutout swivel that houses a ball stud and allows for another 360° of rotation. A wing knob in the center of the arms locks the position of both arms and the swivel ball ends.



Specifications

Base size: 5.5" W x 16" L x 0.25 thick (13.8 x 40.64 x 0.6cm)

Handle Cutout: 4" W x 1" L (10.1 x 2.5cm)

Material: HDPE Blue Polyethylene Colorboard


How to Order
Order the arm system with the item number extension added to the end of the item number for the clamp that matches your intended use
Example: Choose item number 946-06301 for MR/CT Safe Titanium Flex Arm for Slessinger Board 6mm/8mm Clamp Holes w/3" Rail

A chart of Item # Extensions with matching clamp descriptions



Note: Slessinger Board is sold separately
