Stainless Steel Articulating Arm System

Stainless Steel Articulating Arm System
Item Number :
978-603_ _

Stainless Articulating Arm System

Specify Clamp when Ordering

Details

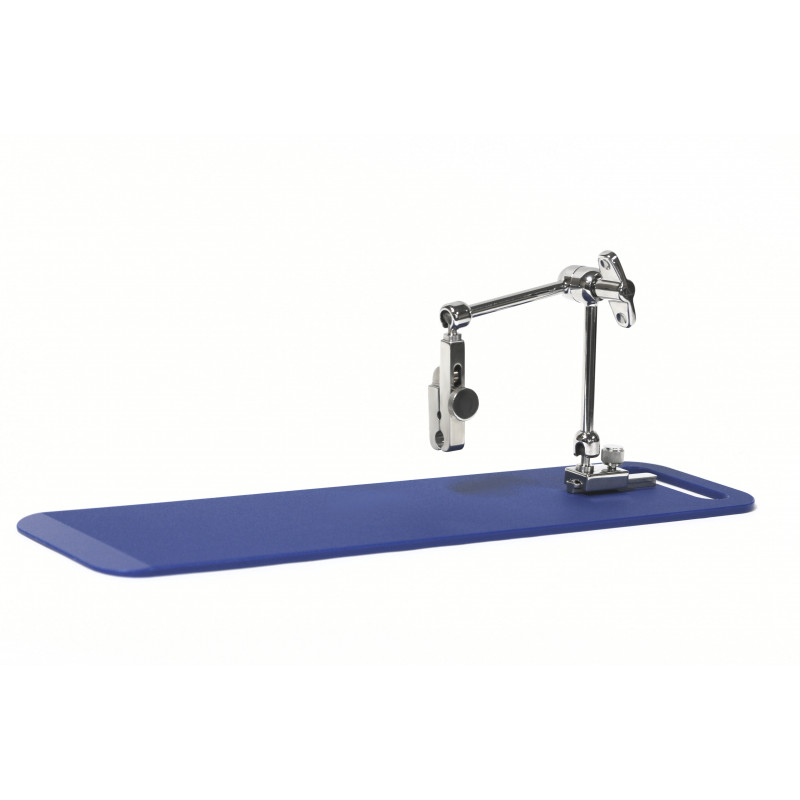

Stainless Articulating Arm System

Shown with Applicator - not included

  • Board is tapered at patient end for patient comfort
  • Cutout handle for easy removal



The Articulating Arm Board was designed to hold a HDR Nucletron, HDR Varian, HDR Eckert & Ziegler, FSD LDR Applicators, Vaginal Cylinder, Tandems, or other objects securely in place during GYN brachytherapy treatment.



Instructions for Use:

The treatment applicator is placed into the patient and the tapered end of the board is slid under the patient. The articulating arm rail block is slid onto the board rail and the applicator clamp is adjusted to fit onto the applicator and locked. The articulating arm and rail block are then locked into place.

The applicator clamp is fixed to one arm of the articulating arm and the other arm is fixed to the rail block. The rail block slides onto the 3" long board rail and is locked in position with the thumb screw.

The Articulating Arm has two (2) arms that can rotate 360°. The end of each arm has a cutout swivel that houses a ball stud and allows for another 360° of rotation. A wing knob in the center of the arms locks the position of both arms and the swivel ball ends.



Specifications

Base Size: 5.5" W x 20.5" L x .25" Thick (13.8 x 52.1 x 0.6 cm)
Handle Cutout: 4" W x 1" L (10.1 x 2.5 cm)
Material: HDPE Blue Polyethylene Colorboard



Articulating Arm Size

Arm Length including Ball Stud: 12.2 cm
Overall Size with arms at 180°: 27 cm W x 6 cm H
Material: Stainless Steel





How to Order
Order the arm system with the item number extension added to the end of the item number for the clamp that matches your intended use.



See GYN Clamp Options Chart here

Example: Choose item number 978-60301 for Stainless Articulating Arm System with Wide 6mm/8mm Clamp Holes
