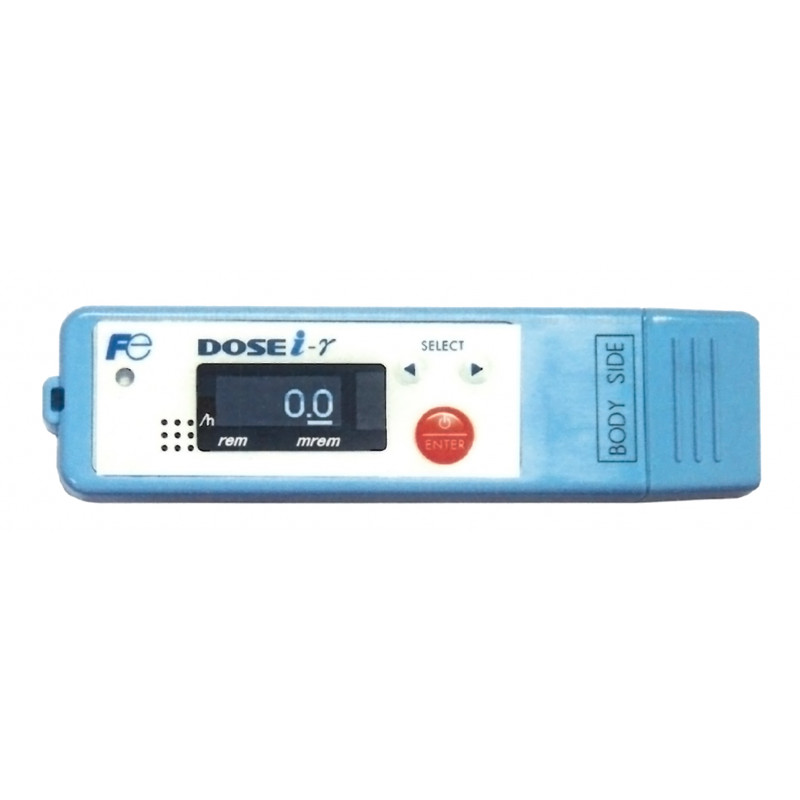

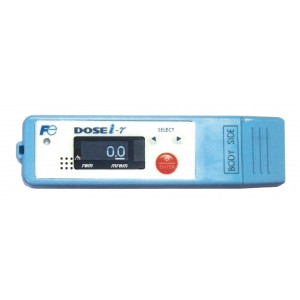

Dose-i Electronic Personal Dosimeter - mrem

Dose-i Electronic Personal Dosimeter - mrem
Dose-i Electronic Personal Dosimeter - mrem
Item Number :
343-100

Dose-i Electronic Personal Dosimeter - mrem

Details

Open Section I: Dosimeters, Monitors, Meters, Check Source & Lead Cases(PDF) to view related products. (Opens in a new tab)

Dose-i Electronic Personal Dosimeter - mrem



 • Small and Lightweight
 • Easy to read display
 • Simple Operation
 • Excellent for healthcare diagnostic imaging where ionizing radiation is present, visual and audible dose and dose-rate alarms
 • Ideal for x-ray and nuclear medicine environments
 • Measures cumulative dose and dose rate of gamma radiation exposure
 • Precision engineered for safety and reliability to the highest standard
 • Measurement range: 0.001-999.9mSv (0.1-99.99mrem)
 • Dose measurement: 0.001-999.9mSv/h (01-99.99mrem/h)
 • Energy range: 35keV to 3MeV
 • Dosimeters are nonreturnable
 • Battery lasts for up to 720 hours (one CR2450 battery included)



Specifications

Radiation Measured: Gamma (X) rays

Detector: Silicon semiconductor

Measurement Range:
0.001mSv to 999.9mSv (0.1 to 99.99mrem)
0.001mSv/h to 999.9mSv/h (0.1 to 99.99mrem/h) for dose measurement

Display Range:
Accumulated Dose: 0.001mSv to 999.9mSv (0.1mrem to 99.99mrem)
Dose Rate*: 0.001mSv/h to 999.9mSv/h (0.1mrem/h to 99.99mrem/h)

Accuracy: < ±10% (0.01mSv to 999.9mSv (1mrem to 99.99rem), 137Cs)

Energy Range: 35keV to 3MeV



Angular Response: < ±20% (Up to ± 60 degree vertical and horizontal, 137Cs)

Dose Rate Linearity: < ±10% ( 137Cs)

Display: 4-digit OLED (0.001 to 999.9)

Indication Data: Dose, Dose rate, Operating time, Alarm

Alarm Volume: 60dB (at 20cm)

Data Storage: Trend data (Up to 600 data)

Power Supply: Primary Battery (CR2450) x 1

Battery Lifetime: 720 hours or more (without alarm /communication)

Communication: Infrared communication (Option: communication cable and software)

Operating Temperature: 14°F to 104°F (-10° to 40° C)

Operating Humidity: Up to 90%RH

Dimensions: 1.2”W x 4.3”H x 0.5”D approx (3 x 11 x 1.2 cm approx.)

Weight: 0.13lb approx (60g approx.)

*Note: Dose-i indicates rough value for dose rate measurement in low radiation field such as less than 1mSv/h (100mrem/h), so it should be used just for reference.
