Dose-i Reader & Configuration Software

Dose-i Reader & Configuration Software
Dose-i Reader & Configuration Software
Item Number :
343-105

Dose-i Reader & Configuration Software

Details

Open Section I: Dosimeters, Monitors, Meters, Check Source & Lead Cases(PDF) to view related products. (Opens in a new tab)

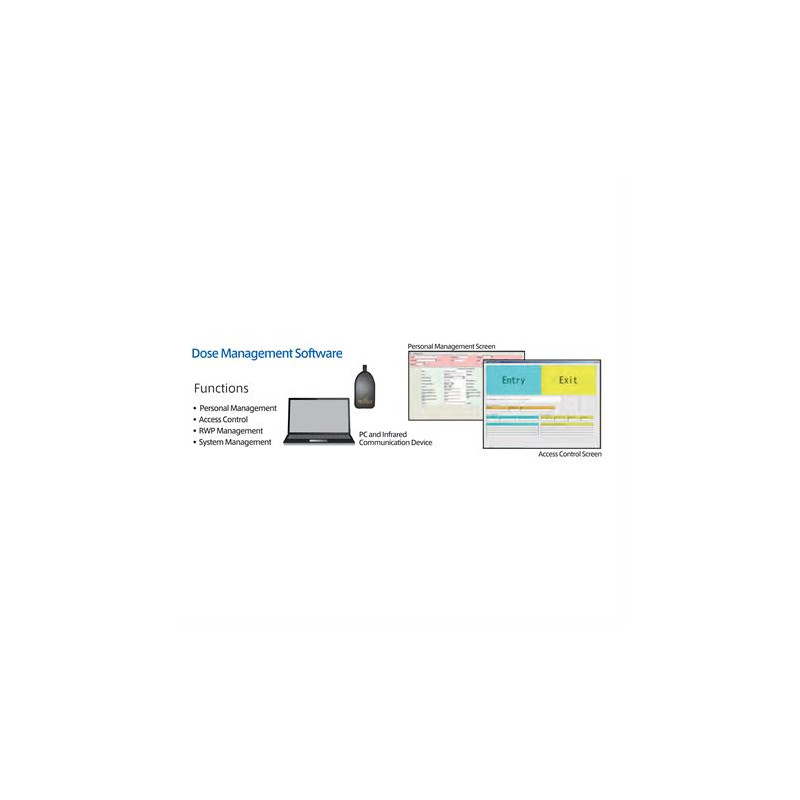

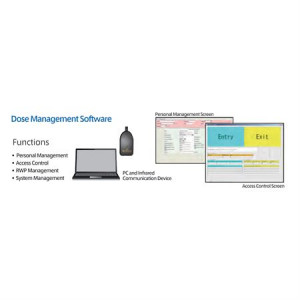

Dose-i Reader & Configuration Software


 • Personal Management
 • Access Control
 • RWP Management
 • System Management
 • PC and Infrared Communication Device



343-105 Dose-i Reader /Configuration Software Includes:
 • PC software (supplied as CD)
 • Infrared communication cable
 • Instruction manual


Specifications

Basic functions:

a. Reading out operation parameters and measurement data from dosimeters
b. Displaying trend data as data table or graph on the screen and downloading as EXCEL sheet
c. Writing operation parameters to dosimeters

Communicates with Electronic Personal Dosimeter Dose-i

Temperatures: 0 to 40°C

Humidity: 30 to 85%

Power supply: DC4.5 to 6.0 V (supplied from connected computer)



Required Environment
The following requirements are applied to (1) hardware and (2) software, respectively.

(1) Hardware - Personal Computer that meet the following specifications

· CPU: 2GHz, or more
· Memory: 1GB, or more
· Hard Drive: Free disc space of 20 MB, or more
· Display: Resolutions 800 x 600, or more

· Communications Interface: USB x 1ch
· Others: Mouse and keyboard

(2) Software - The PC mentioned in (1) should have the following software installed.

· Operating system: Windows® XP/7/8/8.1 operating system
· Others: Microsoft® Office (EXCEL)

* Microsoft®, Windows®, Windows logo®, Windows Start logo® are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
