Elekta Electron Mini-Cone 14cm Adapter Plate

Elekta Electron Mini-Cone 14cm Adapter Plate
Item Number :
895-402

Elekta Electron Mini-Cone 14 cm Adapter Plate.

Details

Open Section K: Electron Cones, Mini, Periscopic & Accessories(PDF) to view related products. (Opens in a new tab)

Elekta Electron Mini-Cone 14 cm Adapter Plate.

The Electron Cone Adapter Plate, allow a 14 cm electron cone to hold the Electron Mini-Cones, Items 895-41900 to 895-47045.  The adapter plates are 1.88 cm thick steel with a nickel chrome plate finish.  A 10.2 cm diameter opening in each adapter plate and three (3) spring plungers hold the brass ring base of each Electron Mini-Cone.  If side or front pressure is presented, the spring plungers allow the Electron Mini-Cone to flip out.

Specifications

Energy Range:  6 MeV to 12 MeV, Transmission at 12 MeV is less than 5% outside of cone
Steel Density:  7.83 g/cm3
Brass Density:  8.515 g/cm3


Adapter Plate
Size:  14 cm x 14 cm (5.5 x 5.5")
Opening:  4" Diameter (10.2 cm)
Material:  1.88 cm Thick Steel (0.74")
Finish:  Nickel Chrome Plated
Sterilization:  Autoclave or Gas - Sterrad NX-100


Isodose curves are available upon request.

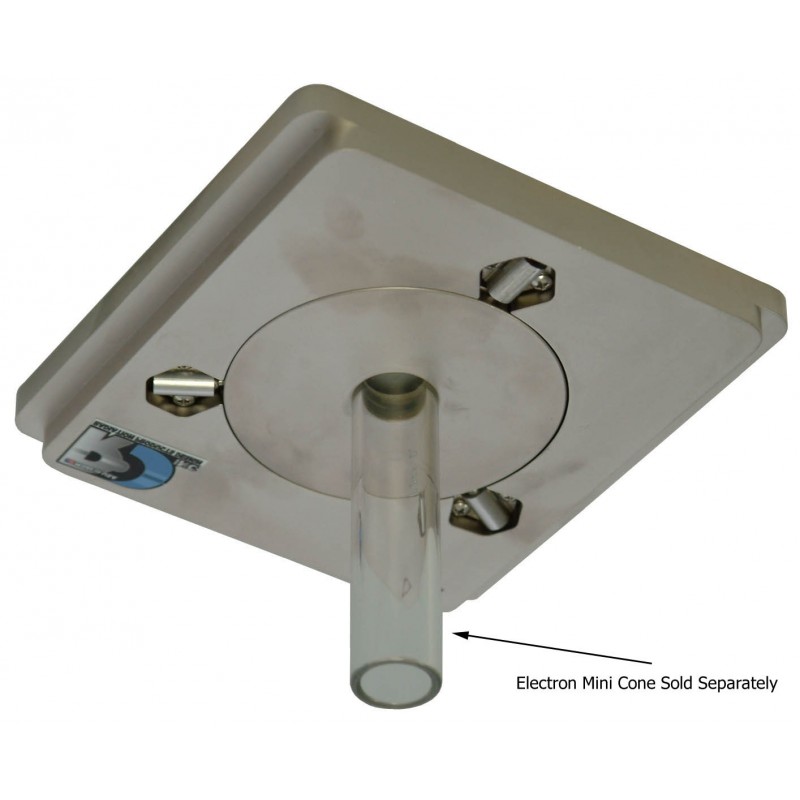

Picture shown with Adapter Plate and Electon Mini-Cone (sold separately).
