X-400 Smokemaster Electronic Air Cleaner, 220 VAC

Open Section A: Block Room Products & Accessories(PDF) to view related products. (Opens in a new tab)

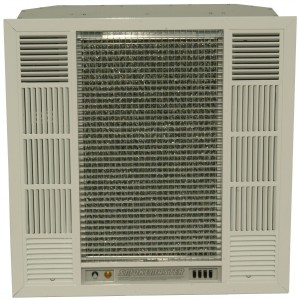

X-400 Smokemaster Electronic Air Cleaner, 220 VAC.

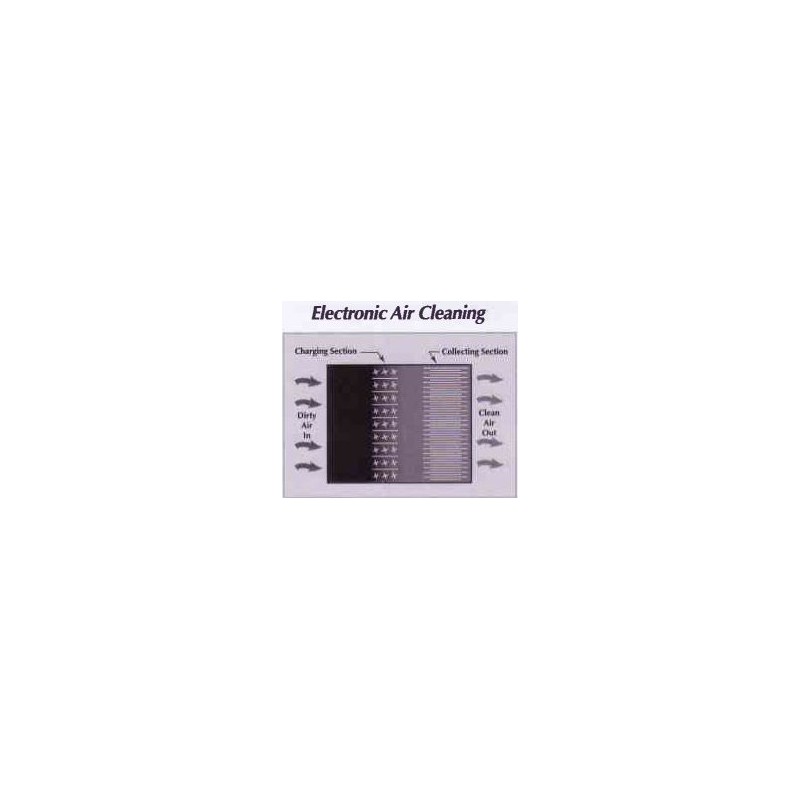

The X-400 air cleaner features a high efficiency electrostatic cell designed to capture both particulate and gaseous contaminants.  Contaminant particles, such as those in tobacco smoke, receive an electrical charge as they pass into the electronic cell and are then attracted to oppositely charged collector plates, where they are held, similar to the way that metal filings collect to a magnet.  The air vent provides dilution control of gaseous contaminants.  Standard activated carbon filter adsorbs odors and gases to further freshen the air.

• Totally self-contained air cleaner

• Ultimate 'flush with ceiling' mounted workhorse

• Features industrial-rated electronic filtration cell

• The X-400 quietly captures both airborne particles and gaseous contaminants.

• Manufactured in the USA

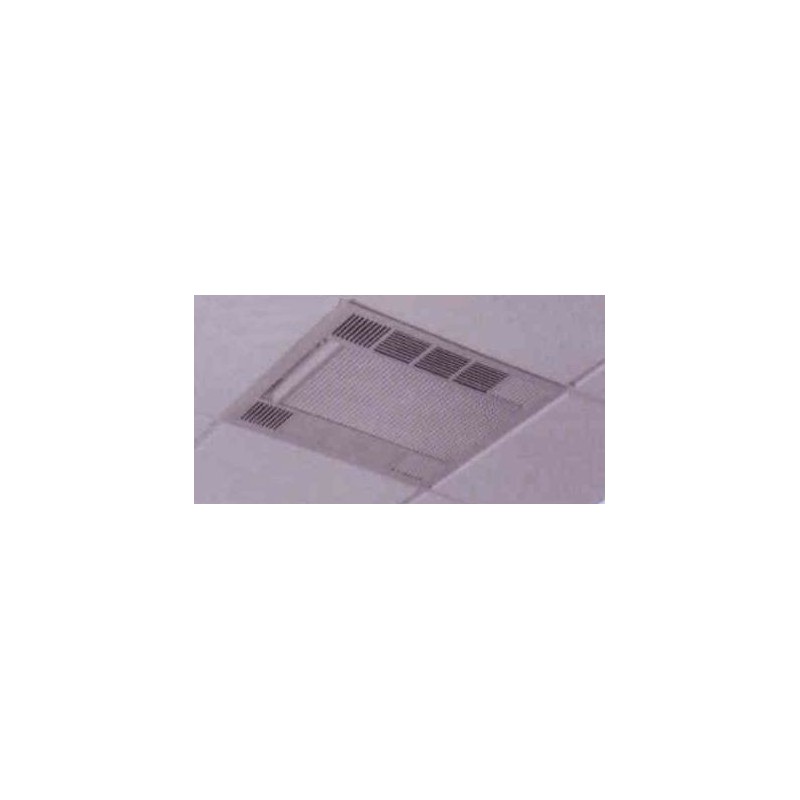

The attractive grille fits flush with the ceiling and is completely inconspicuous.  The cabinet is hidden in the unused space above the drop ceiling tile.

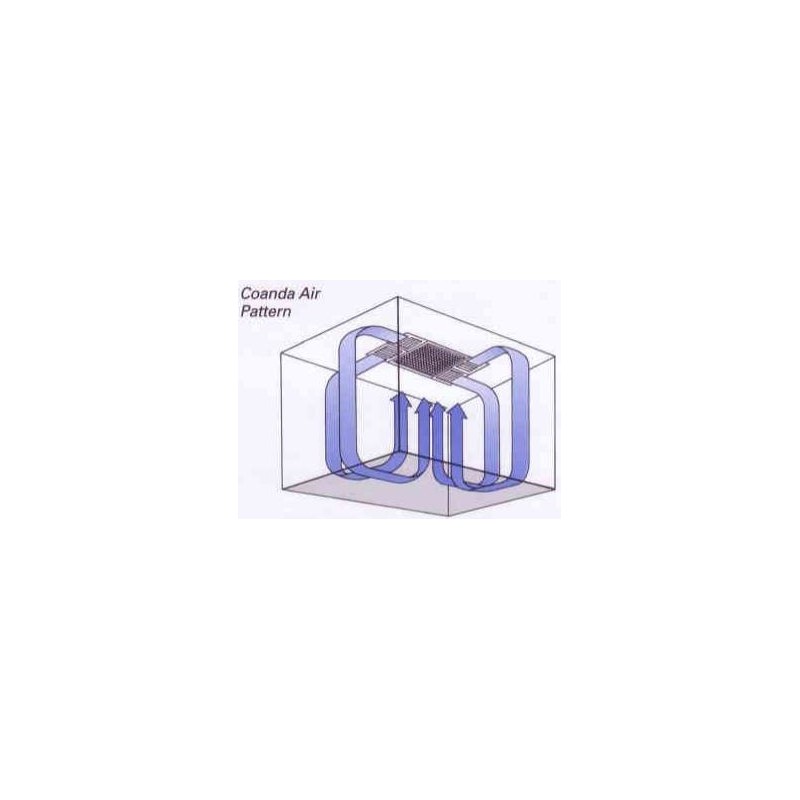

The X-400 success is due to the "Coanda Aerodynamic Principle".  Effective 360º airflow gently and evenly distributes clean air and returns dirty air to the unit.  The unique 4-way method of air recirculation gets the maximum amount of contaminated air to the machine most efficiently.  More air reaches the Smokemaster while eliminating annoying drafts.  This eliminates "stuffy" air pockets and creates people comfort as well as much better air cleaning results.

Features

• High Efficiency: Removes dust, smoke, pollen and other particles using high efficiency electronic collector cells.

• Quiet: Three-speed controller is standard and allows for quiet operation without sacrificing effectiveness.

• Easy Installation: Special mounting brackets simplify the installation and do not require any additional space above the cabinet height of 13-5/8".

• Economical: Permanent electronic collector cells assure low operating cost by eliminating costly filter replacements when maintained per instructions.  Moreover, because collector cells offer no airflow restriction, only limited horsepower is necessary, thus reducing noise and electrical draw.

• Comprehensive: Includes 2 Carbon Post Filters for odor control

Specifications
Electrical Rating:  220v / 50Hz
Low Speed:  175 CFM / .45amps
Medium Speed:  275 CFM / .5 amps
High Speed:  400 CFM / .7 amps
Color:  White
Motor:  .05 Hp Thermally Protected
Dimensions:  24" x 24" x 13 5/8" (61 x 61 x 34.6 cm)
Installed Weight:  44 lbs (20 kg)
Shipping Weight:  54 lbs (24.5 kg)
Primary Filter Collection Area:  52.9 square feet (133 cm)
Sorbent Media:  2 Carbon Post Filters
Air Cleaning Efficiency:  Up to 99.7% ASHRAE 52.2

This Air Cleaner is Not California Air Resources Board (CARB) Certified.
