Lead Tabletop Shield

Lead Tabletop Shield
Item Number :
989-320

Lead Tabletop Shield with 1/2" Thick Lead and 5/8" Thick Lead Glass

Details

Open Section W: Shielding, Mobile L Blocks, Carts, Workstations, Carriers & Pigs(PDF) to view related products. (Opens in a new tab)

Lead Tabletop Shield with 1/2" Thick Lead and 5/8" Thick Lead Glass



Features
• 0.5in (1.27cm) thick Lead Shielding

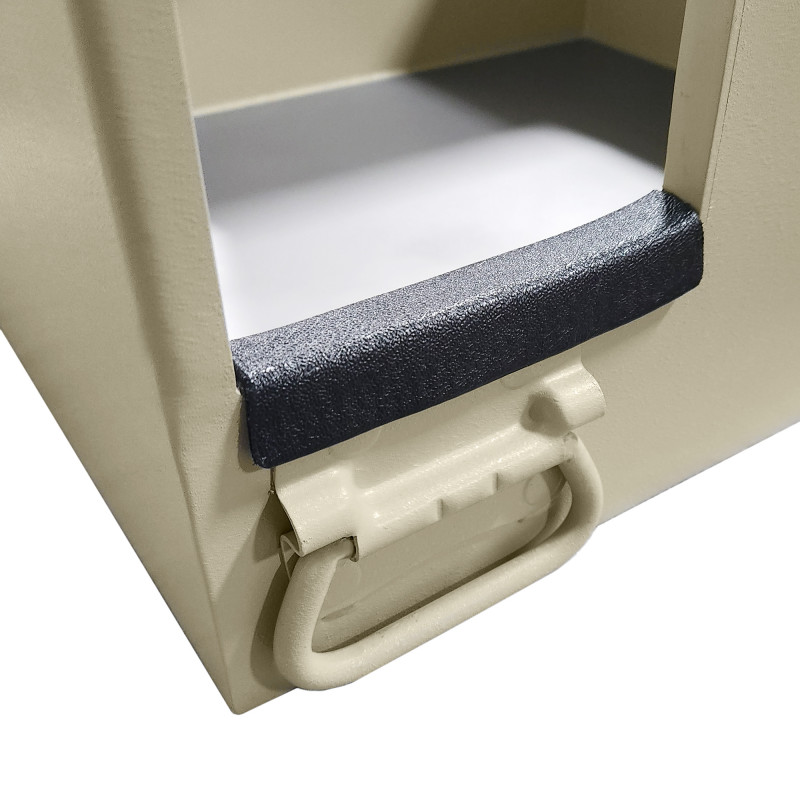

• Carrying handles
• Durable tan textured powder coating finish
• Padding for arm rests

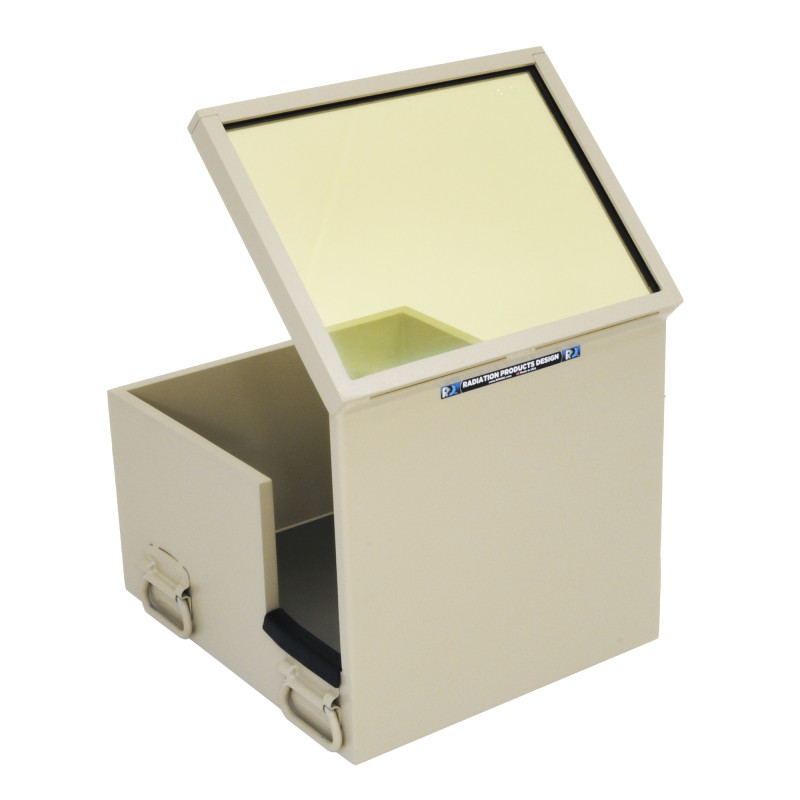

The 1/2” thick Lead Table Top Shield provides exceptional protection to the clinician when filling syringes or for general hot lab work.  The shield has 1/2” lead protection on all four sides and the bottom.  All four sides and the bottom are encased in steel  The inside stainless steel bottom is welded on all corner seams to prevent radiation sources or liquids from hiding under any edges or in any cracks, thus, providing easy cleaning.  The reinforced steel framework prevents any bending or twisting.  One 5/8” thick leaded glass piece is inserted into a steel frame with 1/2” lead overlapping on the front of the shield.



Specifications

Viewing Area: 15.4 x 11.35 in (39.1 x 28.8 cm)
Leaded Glass Size: 16 x 12 x 0.625 in (40.6 x 30.5 x 1.6 cm)
Leaded Glass Density: 5.0 g/cm3
Lead Equivalency @ 150 kvp: 4 mm total
Lead Thickness: 0.5 in (1.27 cm)
Lead Density: 11.35 g/cm3
Front Shield Size: 16 x 15 in (40.6 x 38.1 cm)
Side and Rear Shield Size: 10" H with 6" sq. arm openings on sides
Overall Size: 16 x 18 x 23.5 in (40.6 x 45.7 x 59.7 cm)
Finish: Axalta Beige Ridge Tan Powder Coating
Weight: 265 lbs (120.2 kg)
